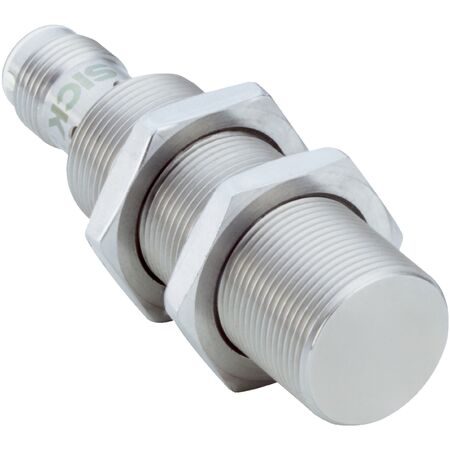

Flush Mount Proximity Sensor M18 | 8mm Sensing Range | IP68 & IP69K Rated | Stainless Steel | by SICK
The Flush Mount Proximity Sensor M18 is designed for robust sensing in hygienic and washdown zones, featuring an 8mm sensing range and IP68/IP69K protection against dust and water. Built with a durable stainless steel V4A housing, it withstands harsh cleaning agents, making it ideal for industrial automation applications where reliability is crucial.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric thread M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Installation type: Flush
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Stainless steel V4A
- Protection class: III
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 18mm x 64.7mm x 18mm
- Weight: 0.1 kg
Key Features
- Flush installation with M18 x 1 metric thread housing
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Stainless steel V4A sensing face resistant to cleaning agents
- IP68 and IP69K rated for high protection against dust and water
- Switching output: PNP, normally closed (NC) with DC 3-wire electrical wiring
- High shock and vibration resistance (100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting and electrical connection in compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush mounting sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments without damage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMI18-08BPONC0S proximity sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
