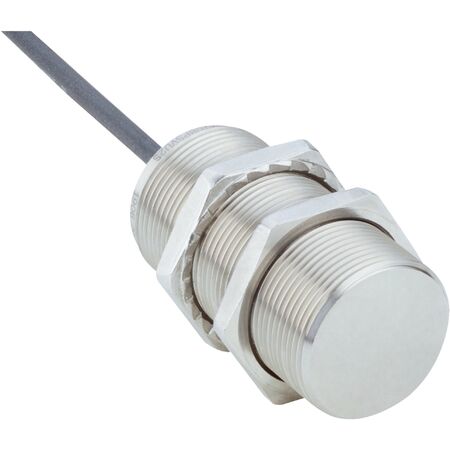

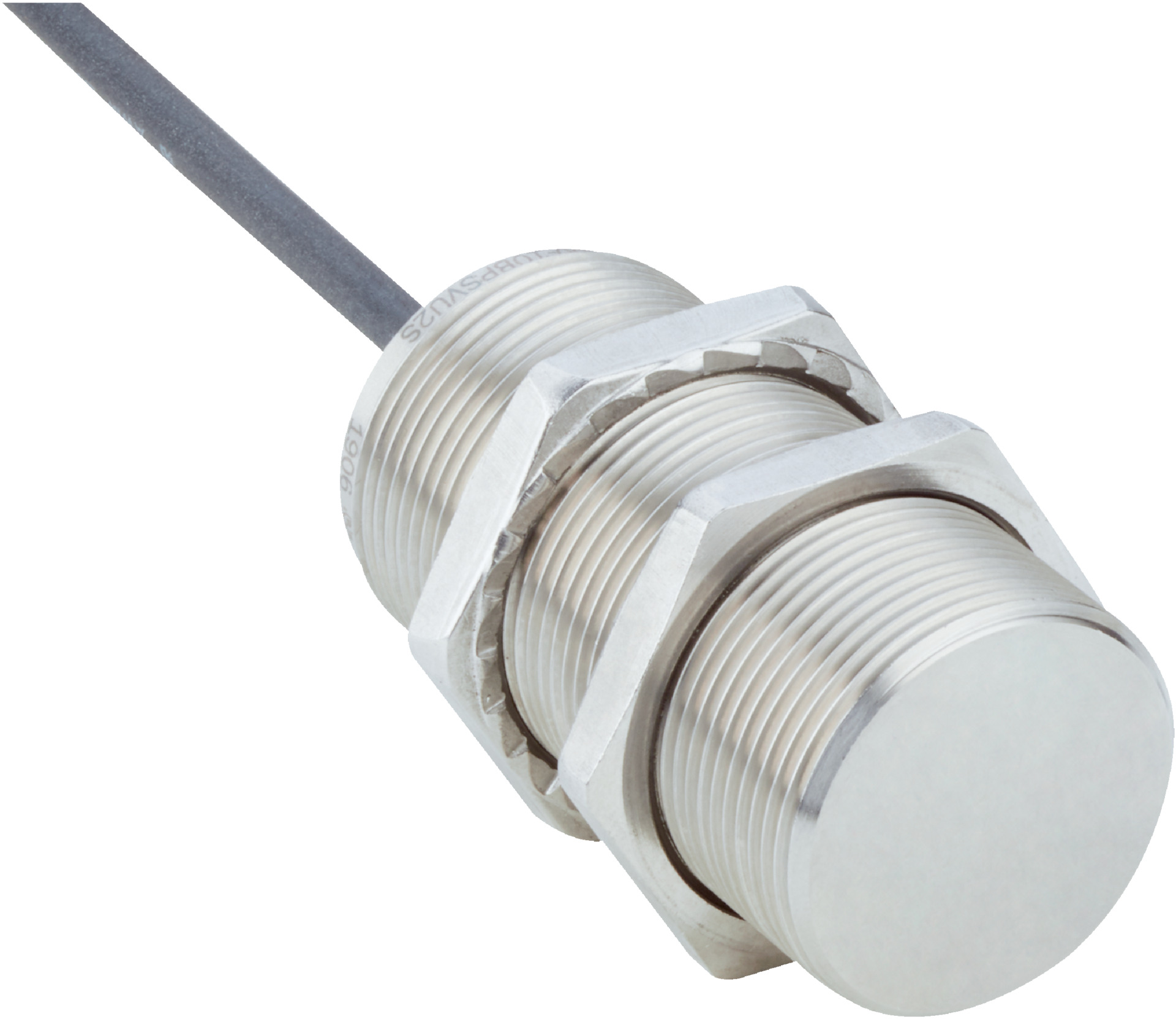

Flush Mount Proximity Sensor M30 | IP68 & IP69K Rated | Stainless Steel Housing | 10mm Sensing Range | by SICK
The Flush Mount Proximity Sensor M30 is designed for industrial automation, featuring a robust stainless steel housing and an IP68/IP69K rating for high protection in harsh environments. With a sensing range of 10mm and a PNP normally closed output, it's perfect for detecting metal objects in areas with coolants and lubricants, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 4.5 mm
- Conductor size: 0.34 mm²
- Shock resistance: 100 g / 5 ms / 1000 cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- Switching output: PNP, normally closed
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency of 50 Hz with PNP normally closed output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A, resistant to coolant lubricants
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel recommended; ensure proper flush mounting and correct wiring according to electrical standards.
Applications
- Industrial automation for detecting metal objects
- Use in zones with coolants and lubricants
- Harsh environments requiring robust sensor solutions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High protection rating (IP68/IP69K) ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMI30-10BPOVU2S proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
