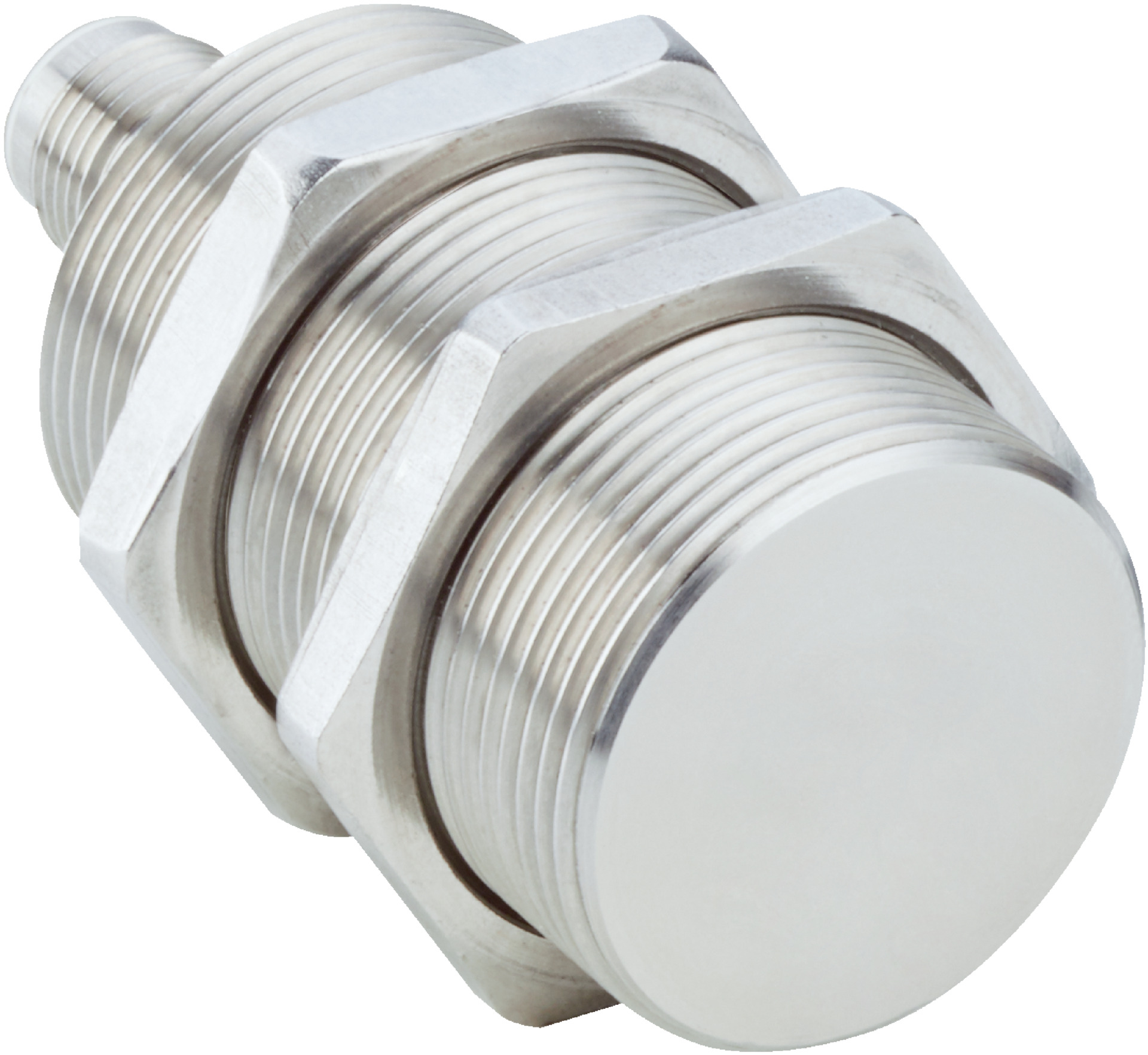

Flush Mount Proximity Sensor M30 | IP68 & IP69K Rated | Stainless Steel Housing | 10mm Sensing Range | by SICK
The Flush Mount Proximity Sensor M30 is designed for robust sensing in hygienic and washdown zones, featuring a 10mm sensing range and IP68/IP69K protection. Built with durable stainless steel V4A, it withstands harsh cleaning agents, making it ideal for industrial automation applications. With a switching output of PNP and high shock resistance, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M30 x 1.5 thread
- Diameter: 30 mm
- Sensing range Sn: 10 mm
- Safe sensing range Sa: 8.1 mm
- Installation type: Flush
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, NC
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Ambient operating temperature: -25°C to +75°C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Dimensions (H x L x W): 65mm x 65mm x 30mm
- Weight: 0.2 kg
Key Features
- Flush installation with metric M30 x 1.5 thread
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Stainless steel V4A housing and sensing face resistant to cleaning agents
- IP68 and IP69K rated for high protection against dust and water
- Switching output: PNP, normally closed (NC) with DC 3-wire electrical wiring
- High shock and vibration resistance
- Short-circuit and power-up pulse protection
- Operating temperature range from -25°C to +75°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connections according to manufacturer guidelines.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush installation proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments without harmful chemical buildup
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

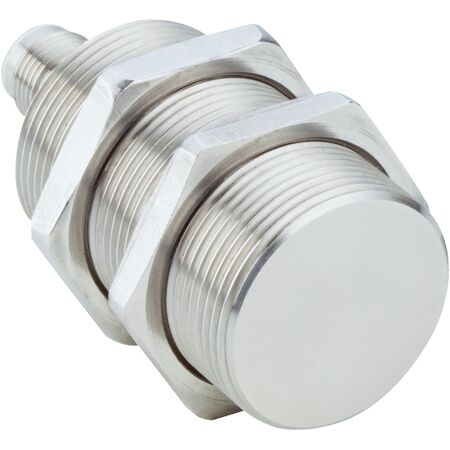

The SICK IMI30-10BPONC0S proximity sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
