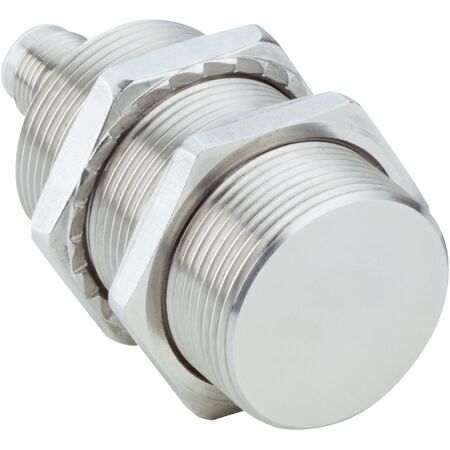

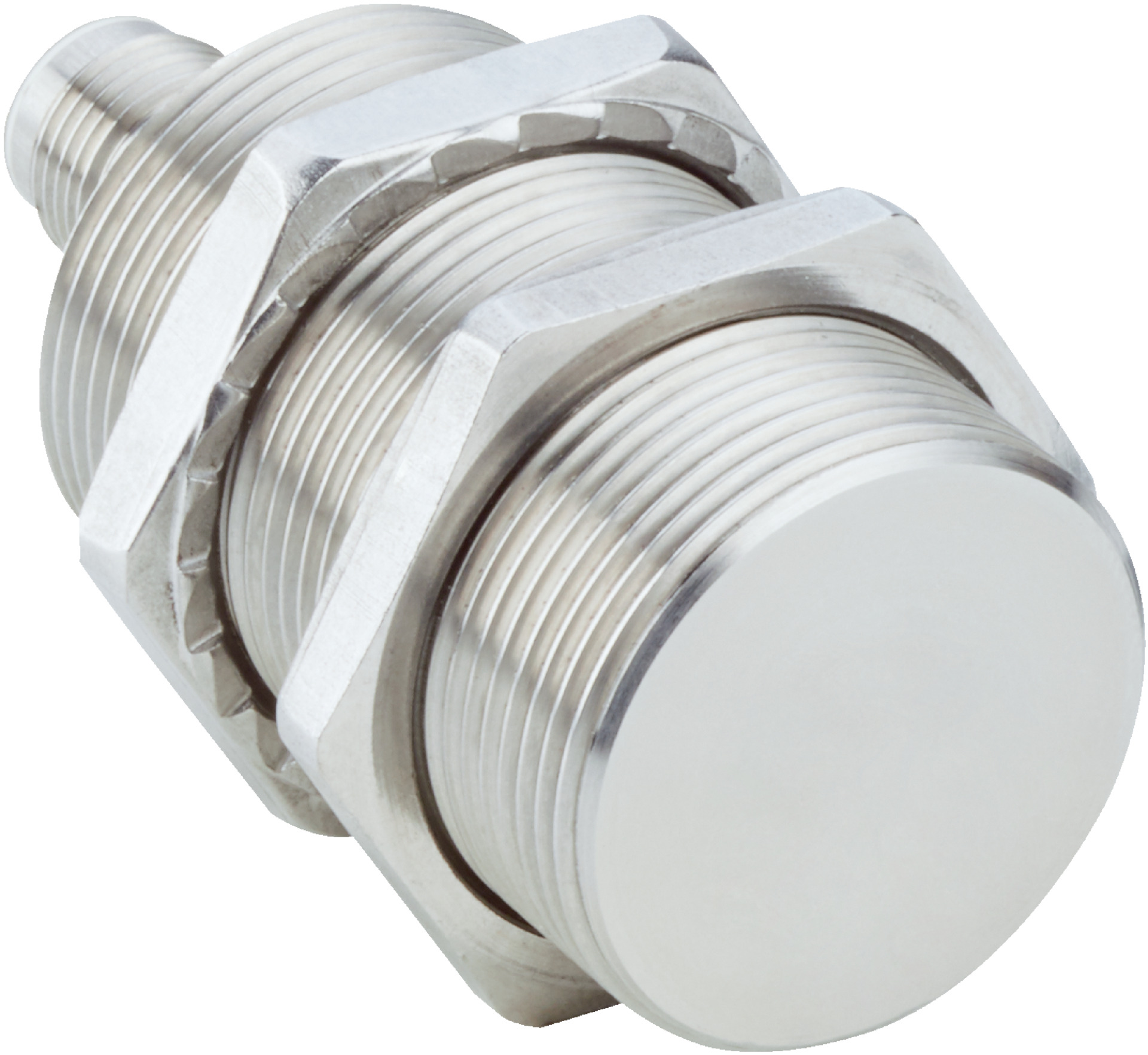

Flush Mount Proximity Sensor M30 | IP68 & IP69K Rated | Stainless Steel | by SICK
The Flush Mount Proximity Sensor M30 is designed for industrial automation, featuring a robust stainless steel housing and an IP68/IP69K rating for high protection against dust and water. With a sensing range of 10 mm and high shock and vibration resistance, it's perfect for detecting metal objects in harsh environments, ensuring reliable performance even in the presence of coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 50 Hz
- Connection type: Male M12, 4-pin connector
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Time delay before availability: ≤ 300 ms
- Protection class: III
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Enclosure rating: IP68, IP69K
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Dimensions (H x L x W): 65mm x 65mm x 30mm
- Weight: 0.15 kg
Key Features
- Flush installation with metric M30 x 1.5 thread
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Stainless steel V2A sensing face resistant to coolant lubricants
- IP68 and IP69K rated for high protection against dust and water
- Switching output: PNP normally open (NO) with DC 3-wire wiring
- High shock and vibration resistance
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25°C to +75°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for detecting metal objects
- Use in zones with coolants and lubricants
- Harsh environments requiring robust sensing solutions
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMI30-10BPSVC0S proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
