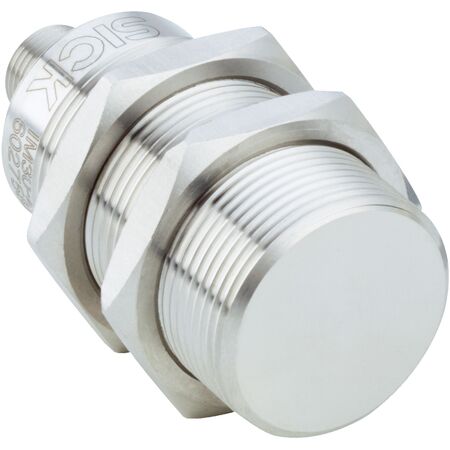

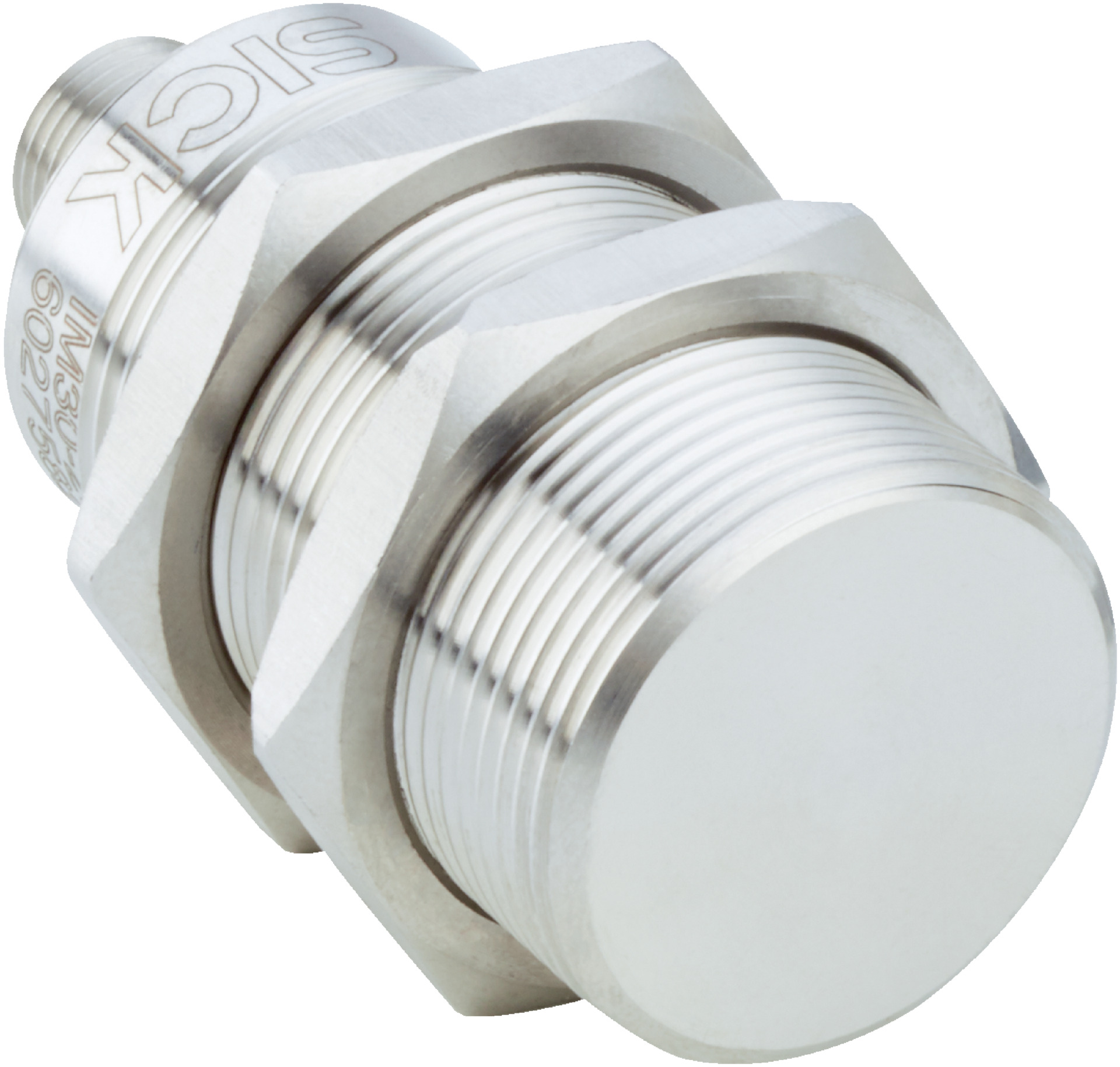

Flush Mount Proximity Sensor M30 | Stainless Steel | IP68 & IP69K Rated | 20mm Sensing Range | by SICK
The Flush Mount Proximity Sensor M30 is designed for robust industrial automation, featuring a 20mm sensing range and IP68/IP69K protection for hygienic environments. With a stainless steel V4A sensing face and IO-Link communication, it ensures reliable performance in challenging conditions, making it ideal for washdown zones and demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 40 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- Protection class: III
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Dimensions (H x L x W): 63.5mm x 63.5mm x 30mm
- Weight: 0.2 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Pressure resistance up to 40 bar
- Switching frequency of 100 Hz with PNP normally open output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A resistant to cleaning agents
- Triple sensing range and visual adjustment indicator
- IO-Link communication interface for advanced data exchange
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring reliable proximity detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to cleaning agents supports hygienic environments reducing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IM30-20BPS-NC1 proximity sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
