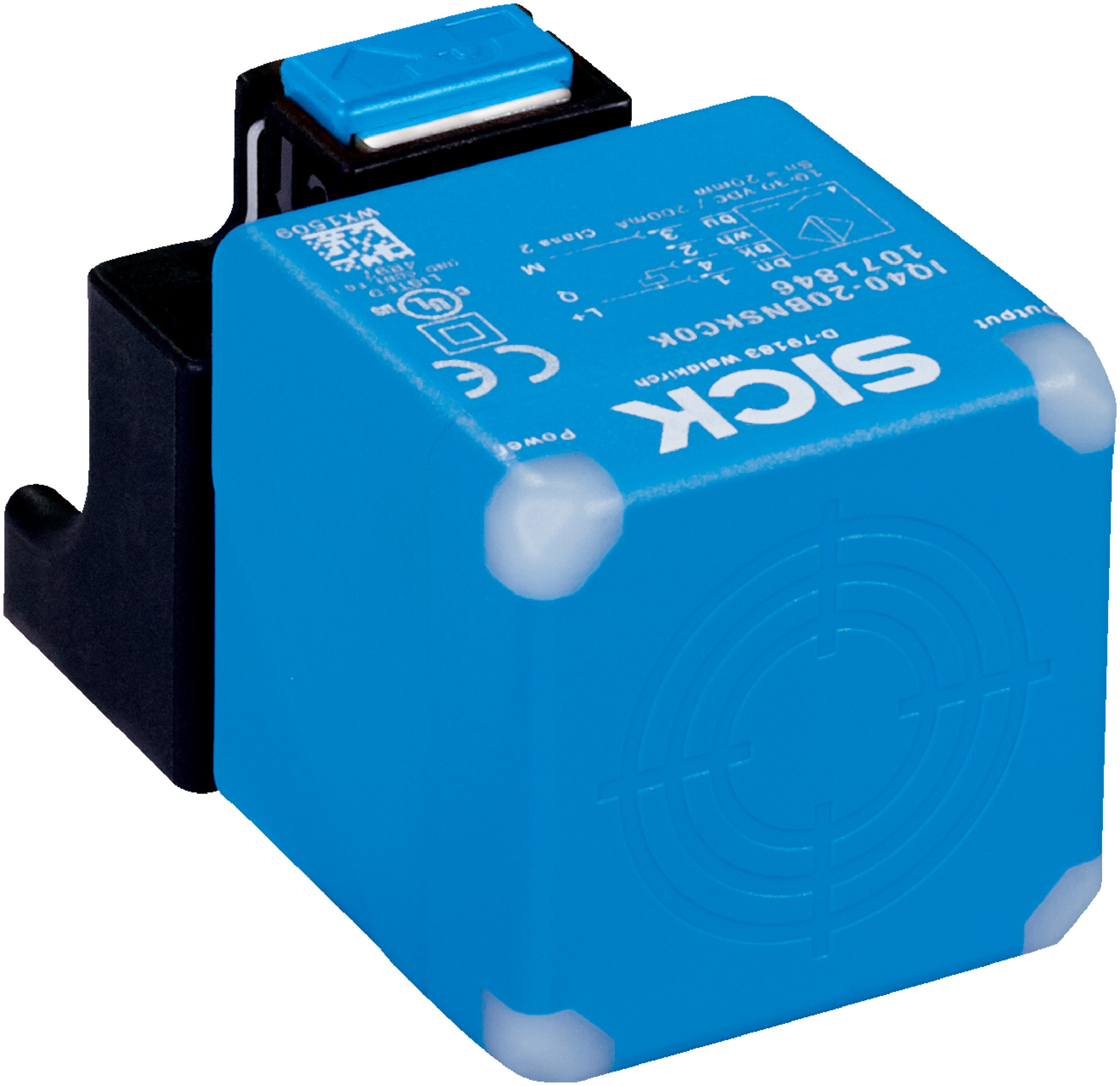

Flush Mount Proximity Sensor | Short Body Design | NPN Output | IP67/IP68/IP69K Rated | by SICK
The Flush Mount Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short body design and NPN normally open output. With a robust IP67/IP68/IP69K protection rating, it excels in harsh environments, ensuring durability and performance even under challenging conditions. Ideal for applications requiring precise sensing and high reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Switching output: NPN, normally open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67, IP68, IP69K
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Housing material: Plastic, PA 66
- Protection class: II
- Switching frequency: 150 Hz
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 150 Hz
- NPN normally open (NO) switching output
- Male connector M12, 4-pin connection
- Electrical wiring: DC 3-wire
- High protection rating: IP67, IP68, IP69K
- Push-lock mounting system included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring reliable sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Robust design reduces need for frequent replacements, minimizing electronic waste
- High protection ratings ensure durability in harsh environments, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IQ40-20BNSKC0K sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
