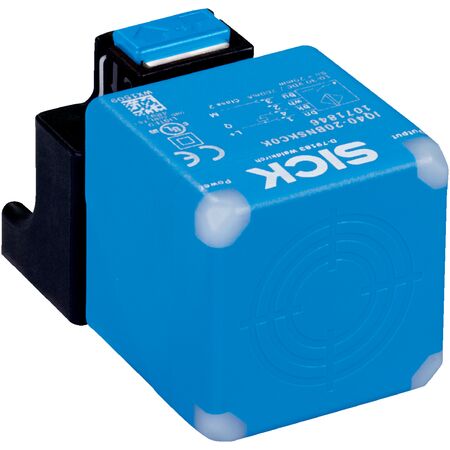

Flush Mount Proximity Sensor | Short-body Design | PNP NC Output | IP67, IP68, IP69K Rated | by SICK
The Flush Mount Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body housing and PNP normally closed output. With a sensing range of 20 mm and high protection ratings of IP67, IP68, and IP69K, it excels in harsh environments, ensuring durability and performance even under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Ambient storage temperature: -40 °C to +85 °C
- Housing material: Plastic PA 66
- Sensing face material: Plastic PA 66
- Tightening torque max: 1.8 Nm
- Protection class: II
- Switching output: PNP normally closed
- Switching frequency: 150 Hz
- Connection type: Male connector M12, 4-pin
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 150 Hz
- PNP normally closed output function
- Male connector M12, 4-pin connection
- Electrical wiring: DC 3-wire
- High protection rating: IP67, IP68, IP69K
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from -25 °C to +85 °C
- Short-circuit and power-up pulse protection
- Housing and sensing face made of durable Plastic PA 66
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IQ40-20BPOKC0K sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
