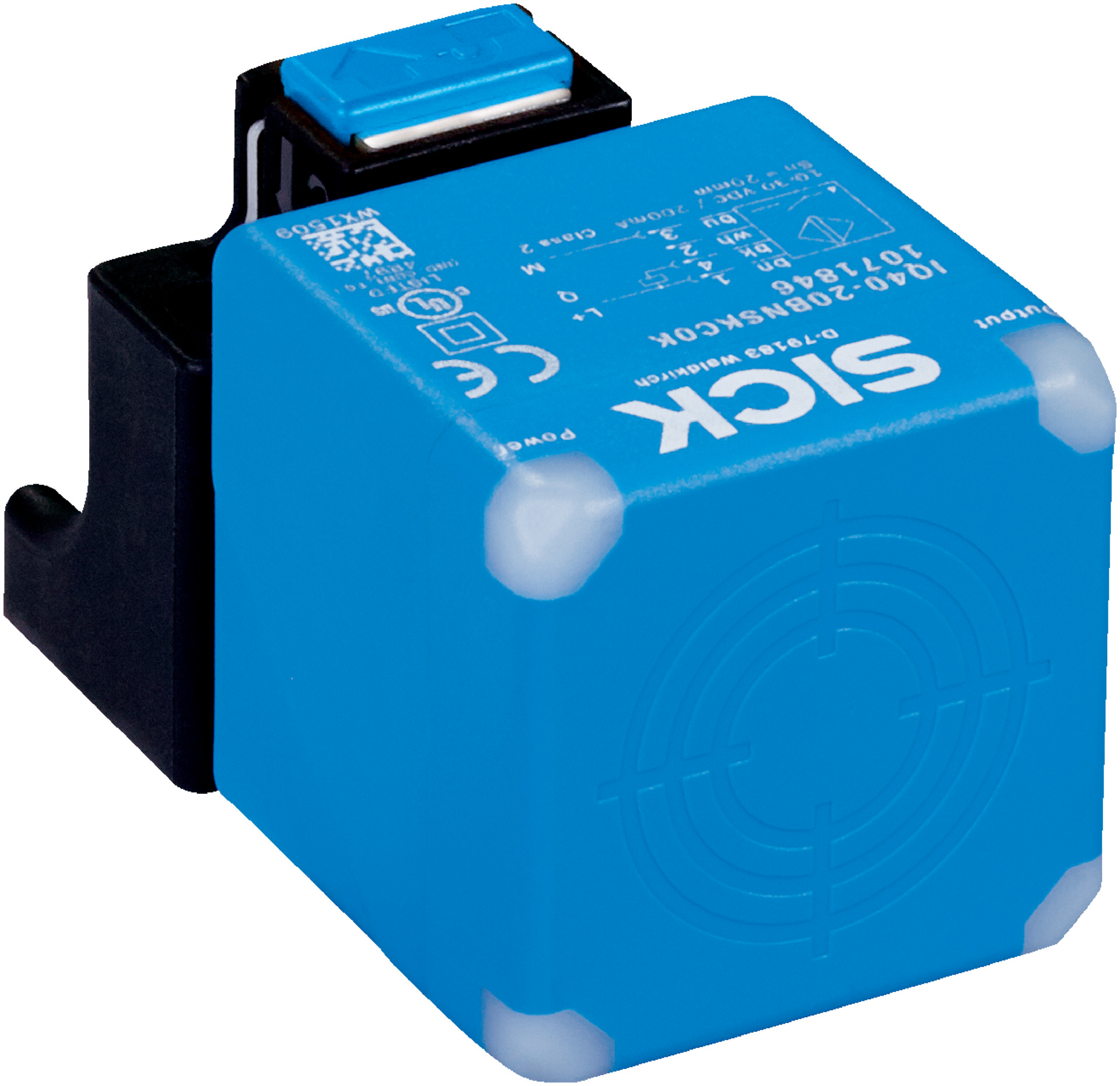

Flush Mount Proximity Sensor | Short Body Design | PNP Output | IP67/IP68/IP69K Rated | by SICK
The Flush Mount Proximity Sensor is designed for industrial automation, featuring a short body design and a sensing range of 20 mm with a safe sensing range of 16.2 mm. Ideal for challenging application conditions, this sensor offers robust performance with a PNP output and high protection ratings, ensuring reliable object detection in machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +85 °C
- Ambient storage temperature: –40 °C to +85 °C
- Housing material: Plastic, PA 66
- Sensing face material: Plastic, PA 66
- Tightening torque max: 1.8 Nm
- Protection class: II
- Switching output: PNP, Normally Open (NO)
- Connection type: Male connector M12, 4-pin
- Switching frequency: 150 Hz
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 150 Hz
- PNP switching output with NO function
- Male connector M12, 4-pin connection
- High protection rating: IP67, IP68, IP69K
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +85 °C
- Plastic PA 66 housing and sensing face material
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper mounting and electrical connection.
Applications
- Industrial automation for object detection
- Difficult application conditions requiring robust sensing
- Flush installation in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IQ40-20BPSKC0KP03 sensor is available for immediate purchase, ideal for industrial automation and difficult sensing applications.
