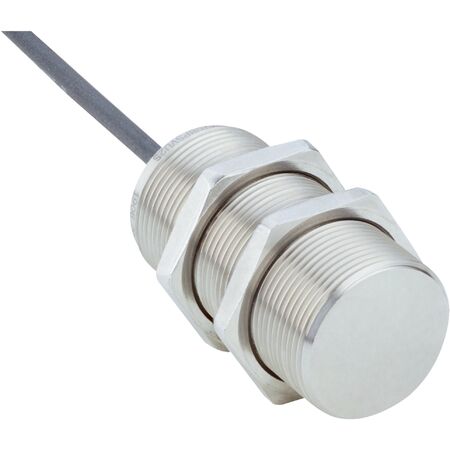

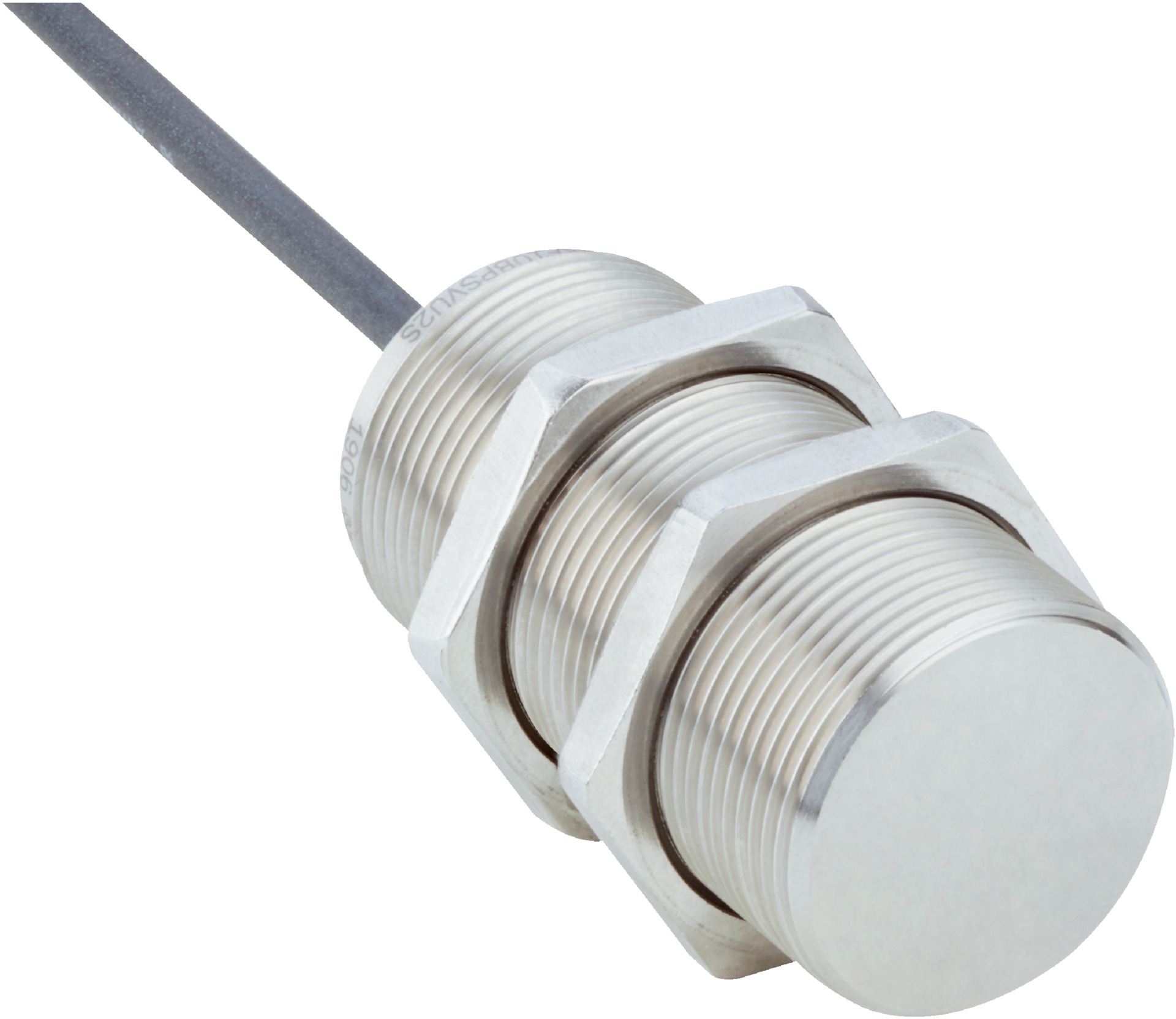

Flush Mount Proximity Sensor | Stainless Steel V4A | IP68 & IP69K Rated | 10 mm Sensing Range | by SICK
The Flush Mount Proximity Sensor is designed for robust industrial automation, featuring a stainless steel V4A housing and an impressive IP68/IP69K rating for dust and water protection. With a sensing range of 10 mm and a high switching frequency of 50 Hz, it's perfect for hygienic and washdown zones, ensuring reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 4.5 mm, conductor size 0.34 mm²
- Protection class: III
- EMC compliant according to EN 60947-5-2
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.2 kg
Key Features
- Flush installation with metric M30 x 1.5 thread size
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Housing and sensing face made of stainless steel V4A (DIN 1.4404 / AISI 316L) resistant to cleaning agents
- IP68 and IP69K rated for high protection against dust and water
- Switching output: PNP, normally open (NO) with DC 3-wire electrical wiring
- High switching frequency of 50 Hz
- Cable connection with 3-wire, 2 m PUR cable
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant withstanding up to 150 g and 1 million cycles
- Wide ambient operating temperature range from -25 °C to +75 °C
- Supplied with two V4A stainless steel mounting nuts
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush mounting sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMI30-10BPSNU2S proximity sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
