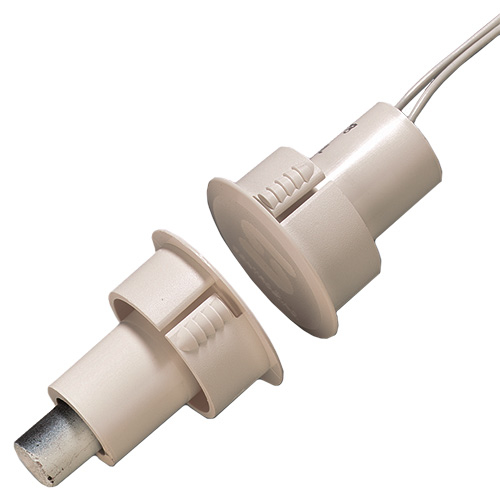

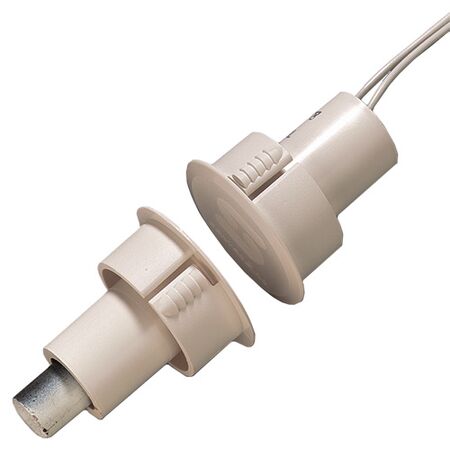

Flush Mount Reed Switch 25.4mm Hardwired Magnetic Operation Tecom
Tecom flush mount reed switch features 25.4mm size, hardwired connection and magnetic operation. Ideal for door contacts in alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Recessed Magnetic Reed Switch, Flush Mount Door Contact, Wired Alarm Door Sensor, Recessed Door Contact
Technical Specifications
- Product Type: Flush mount magnetic reed switch
- Nominal Size: 25.4 mm, approximately 1 inch
- Connection: Hardwired lead connection
- Operation: Magnetically actuated reed contact
- Installation: Recessed installation into a door, window or frame
- Application: Low-voltage alarm and access-control circuits
- Dimensions (H x L x W): 31.8mm x 25.4mm x 25.4mm
- Weight: 0.1 kg
Key Features
- Flush mount design for concealed installation
- Hardwired connection for reliable alarm-panel integration
- Magnetic operation detects opening and closing of doors or windows
- Suitable for residential, commercial and light-industrial security systems
- Compact 25.4 mm form factor
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical technician, with the contact connected to a compatible extra-low-voltage alarm or access-control input in accordance with the system manufacturer’s instructions.
Applications
- Door opening detection
- Window opening detection
- Intruder alarm systems
- Access-control door monitoring
- Security monitoring of cabinets, gates and panels
Standards & Compliance
- Applicable to intruder alarm system installations designed and installed in accordance with AS/NZS 2201.1:2007; product-specific certification was not verified.
Environmental Benefits
- Passive low-voltage switching operation requires no local power supply at the sensor
- Durable concealed installation can help reduce replacement frequency and component waste
- Compact construction uses relatively little material compared with powered detection devices
Warranty Information
No Tecom manufacturer warranty period for this specific reed switch was located. Australian Consumer Law consumer guarantees may apply where purchased from an Australian business.
Available Now
Available through Aspen Pumps and authorised Australian security-equipment distributors, subject to current distributor stock.
