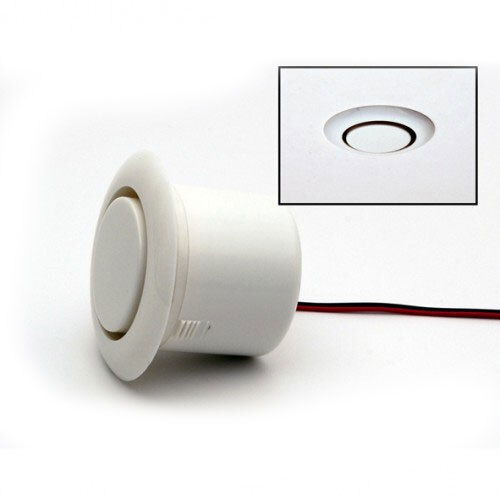

Flush Mount Screamer 12V DC 110dB Off White Ness

BRAND: Ness
SKU: 100-004
$16.70 List price: $22.20
+ −
30 Days Return Electricians Unlock Trade Access
Ness flush mount screamer features 12V DC operation, 110dB output and an off white finish. Ideal for alarm systems and security installs.

Alternatively Known As: 12V Internal Flush Mount Screamer, Two-Tone Alarm Screamer, Flush-Mount Security Siren

Technical Specifications
  • Product Type: 12V internal flush mount screamer
  • Sound Output: 110dB ±5dB at 100cm at 12V DC
  • Tone: Two-tone
  • Operating Voltage: 12V DC nominal; 9–15V DC range
  • Current Draw: 130mA at 12V DC
  • Construction: ABS plastic
  • Wire Lead Length: 400mm
  • Colour: Off-white
  • SKU: 100-004
  • Dimensions (H x L x W): 48mm x 54mm x 54mm
  • Weight: 0.12 kg
Key Features
  • Flush-mount design for discreet internal alarm installations
  • Two-tone audible alarm output
  • 110dB sound pressure level measured at 100cm
  • Compatible with nominal 12V DC alarm systems
  • Low 130mA current draw
  • 400mm wire leads included
  • Off-white ABS plastic housing
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security installer in accordance with the alarm panel manufacturer's instructions and applicable requirements of AS/NZS 2201.1. The device is low-voltage, but correct polarity, circuit supervision and alarm-system commissioning are required.
Applications
  • Internal residential alarm systems
  • Commercial security alarm systems
  • Intruder alarm warning circuits
  • Security system replacement or retrofit installations
  • Access control and duress alarm warning applications
Standards & Compliance
  • AS/NZS 2201.1:2007 may apply when the screamer is installed as part of an intruder alarm system at a client's premises; product-specific compliance is not stated by the manufacturer
Environmental Benefits
  • ABS plastic construction is durable and supports extended service life
  • Low 12V DC current draw helps minimise operating energy consumption
  • Ness publishes a RoHS certificate of compliance for its product range
  • Compact construction reduces material use and transport volume compared with larger siren housings
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.

Available Now

Available through Ness and authorised Australian security and electrical distributors.
