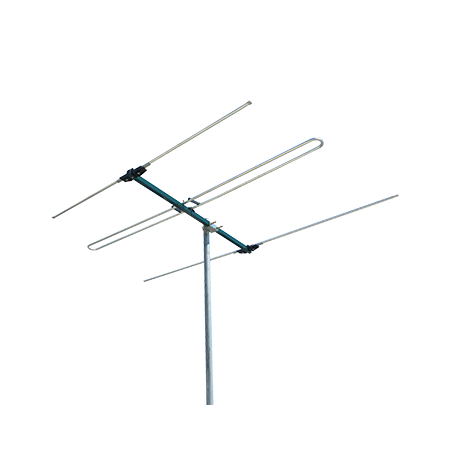

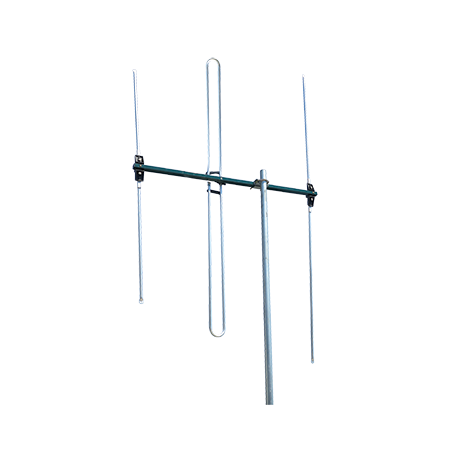

FM Antenna 88-108MHz | 3 Elements | Balun Included | Weather-Resistant by Matchmaster

SKU: 03MM-FM3
$170.70 List price: $206.60
+
FM antenna with 88-108MHz range and 3-element design—ideal for home audio and commercial broadcasting. Built for enhanced signal reception, with weather-resistant materials and balun for impedance matching.

Product Name/Title: FM Antenna (88-108MHz) with Balun 3 Elements

Brand: Matchmaster

SKU: 03MM-FM3

Alternatively Known As: FM Radio Antenna, 3 Element FM Antenna, Outdoor FM Antenna, FM Broadcast Antenna

Technical Specifications
  • Frequency Range: 88-108MHz
  • Elements: 3
  • Gain: 5dB
  • Front/Back Ratio: 15dB
  • Material: 12.7mm extruded aluminium tube
  • Design: Snap lock for easy installation
  • Dimensions (H x L x W): 150mm x 600mm x 600mm
  • Weight: 1.2 kg
Key Features
  • 3 element FM antenna
  • Receives FM 88-108MHz
  • 12.7mm heavy-duty extruded aluminium elements for maximum strength and durability
  • 5.0dB maximum gain
  • Snap lock design for fast installation
Professional Installation Requirements
  • Professional installation is recommended to ensure optimal signal reception and secure mounting.
Applications
  • Residential: FM radio reception in homes
  • Commercial: FM signal reception for businesses and public venues
  • Outdoor: Suitable for installation in harsh Australian environments
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable construction reduces need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster FM Antenna (88-108MHz) with Balun 3 Elements is available now for immediate purchase. Ideal for residential and commercial FM radio reception.

Brochure (03mm-fm3_brochure.pdf, 323 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
