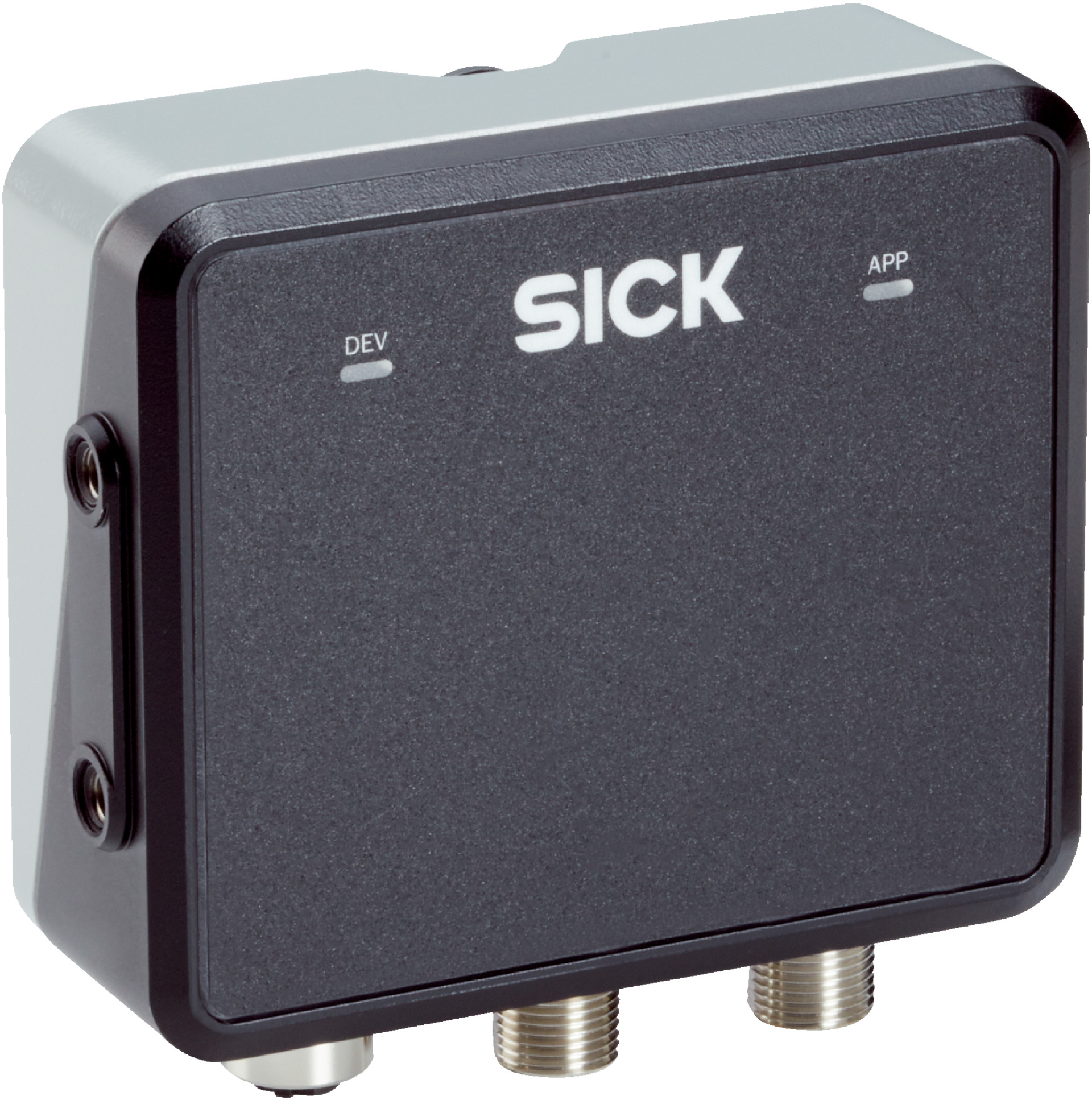

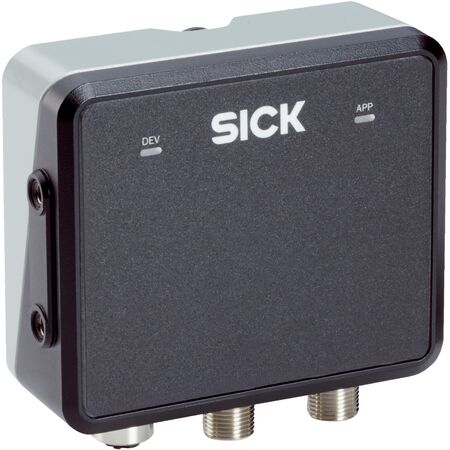

FMCW Radar Sensor RMS2731C-636511 | 61 GHz Frequency | IP67 & IP69 Rated | by SICK
The FMCW Radar Sensor RMS2731C-636511 is designed for precise distance and speed detection, operating within a frequency band of 61 GHz to 61.5 GHz. With a robust IP67 and IP69 rated housing, it’s perfect for both indoor and outdoor applications, ensuring reliable performance in industrial automation and safety systems. Its low power consumption and fast initialization time make it an efficient choice for various measurement tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: FMCW
- Frequency band: 61 GHz to 61.5 GHz
- Transmitting power: ≤ 100 mW (e.i.r.p.)
- Aperture angle: Horizontal ±60°, Vertical ±4°
- Working range: 0.4 m to 100 m
- Distance accuracy: 0.04 m to 0.1 m depending on range
- Speed range: ±30 m/s
- Speed resolution: 0.625 m/s
- Supply voltage: 9 V DC to 32 V DC
- Power consumption: Typical 4 W, max 36 W for digital outputs without load
- Enclosure rating: IP67, IP69
- Protection class: III
- Weight: 300 g
- Dimensions (L x W x H): 34 mm x 97 mm x 96 mm
- MTBF: 81 years
- MTTFD: > 100 years
- Initialization time: 20 s
- Measurement cycle duration: 100 ms
- Number of field sets: Up to 4 zones
- Interfaces: Ethernet (10/100 MBit/s), 2 digital inputs, 4 digital outputs
- Electromagnetic compatibility: ETSI EN 301 489-1, EN 61000-6-2, EN 61000-6-4
- Radio standard: ETSI EN 305 550
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: -40 °C to +65 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 96mm x 34mm x 97mm
- Weight: 0.3 kg
Key Features
- FMCW measurement principle for accurate distance and speed detection
- Frequency band: 61 GHz to 61.5 GHz
- Working range from 0.4 m up to 100 m depending on target size
- Angular accuracy of 1.5° and resolution of 15° in azimuth
- High speed range of ±30 m/s with speed resolution of 0.625 m/s
- Robust housing with IP67 and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +65 °C
- Multiple connection types including M12 connectors
- Low power consumption typically 4 W
- Fast initialization time of approximately 20 seconds
- Supports Ethernet communication with 10/100 MBit/s data rate
- Digital inputs and outputs for integration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor object detection and measurement
- Industrial automation and safety systems
- Zone evaluation with up to 4 configurable zones
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
- Meets EMC requirements under AS/NZS standards equivalent to ETSI EN 301 489-1
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67/IP69 housing extends product life and reduces waste
- Long MTBF and MTTFD values minimize replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RMS2731C-636511 FMCW Radar Sensor is available for immediate purchase, ideal for industrial automation, safety, and measurement applications in both indoor and outdoor environments.
