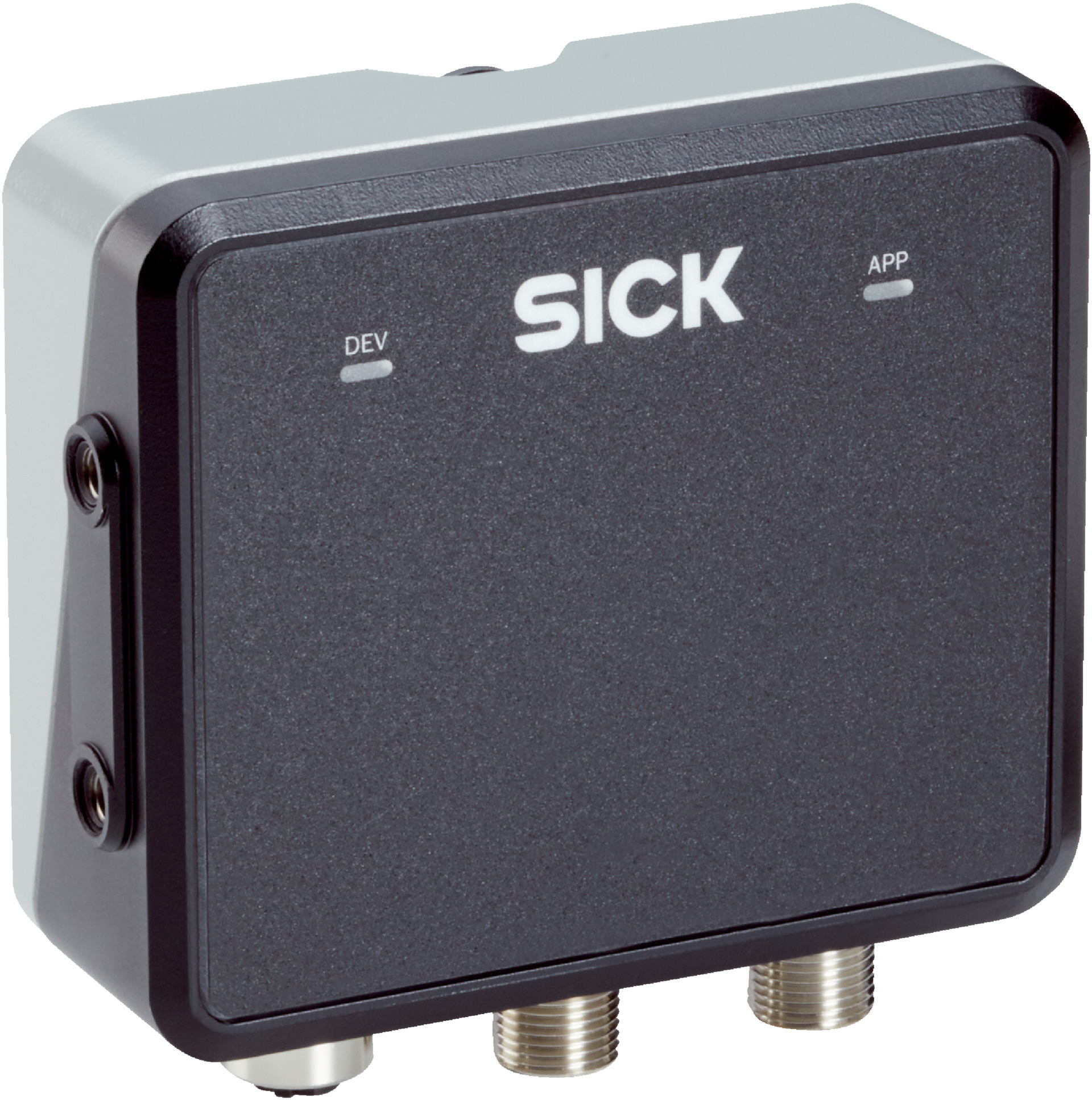

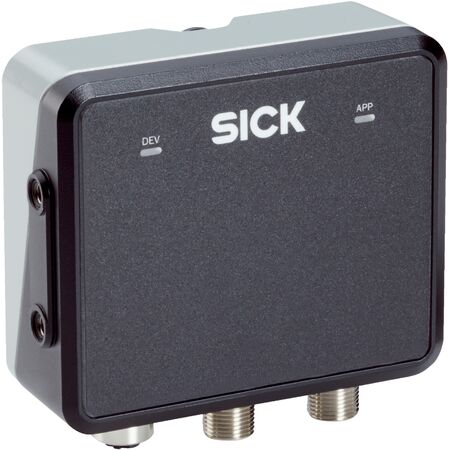

FMCW Radar Sensor RMS2731C-636011 | IP67 & IP69 Rated | Accurate Distance & Speed Detection | by SICK
The FMCW Radar Sensor RMS2731C-636011 is designed for precise outdoor and indoor monitoring, featuring a robust IP67 and IP69 rated housing. With a wide operating temperature range of -40 °C to +65 °C and low power consumption of just 4 W, this sensor is perfect for industrial applications requiring reliable distance and speed detection across configurable zones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection types: 1 x M12 male connector 8-pin A-coded, 1 x M12 male connector 5-pin A-coded, 1 x M12 female connector 4-pin D-coded
- Supply voltage: 9 V DC to 32 V DC
- Power consumption: Typical 4 W, max 36 W for digital outputs without load
- Housing color: Gray (RAL 7042)
- Enclosure rating: IP67 and IP69
- Protection class: III
- Weight: 300 g
- Dimensions (L x W x H): 34 mm x 97 mm x 96 mm
- MTBF: 81 years
- MTTFD: > 100 years
- Initialization time: Typically 20 seconds
- Measurement cycle duration: 100 ms
- Data transmission rate: 10/100 MBit/s
- Digital inputs: 2
- Digital outputs: 4
- Electromagnetic compatibility: ETSI EN 301 489-1, EN 61000-6-2, EN 61000-6-4
- Radio standard: ETSI EN 305 550
- Vibration resistance: EN 60068-2-6:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Operating temperature range: -40 °C to +65 °C
- Storage temperature range: -40 °C to +85 °C
- Dimensions (H x L x W): 96mm x 34mm x 97mm
- Weight: 0.3 kg
Key Features
- FMCW measurement principle for accurate distance and speed detection
- Frequency band: 60.5 GHz to 61 GHz
- Transmitting power ≤ 100 mW (e.i.r.p.)
- Wide aperture angle: Horizontal ±60°, Vertical ±4°
- Working range from 0.4 m up to 100 m depending on target size
- High angular accuracy of 1.5° and angular resolution of 15°
- Distance accuracy up to 0.1 m and speed accuracy up to 0.15 m/s
- Robust housing with IP67 and IP69 protection ratings
- Wide operating temperature range from -40 °C to +65 °C
- Low power consumption typically 4 W
- Multiple interfaces including Ethernet (10/100 MBit/s), digital inputs and outputs
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor monitoring and detection
- Indoor monitoring and detection
- Zone evaluation with up to 4 configurable zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67/IP69 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RMS2731C-636011 FMCW Radar Sensor is available for immediate purchase, ideal for outdoor and indoor industrial monitoring and detection applications.
