Foam Inductor L Type | Storz 65 Compatibility | 400 lpm Flow Rate | Adjustable Admixing by Firebox

BRAND: Firebox
SKU: AWGZ4-INDUCTOR
$1,885.50 List price: $2,282.10
+ −
30 Days Return Delivery Options

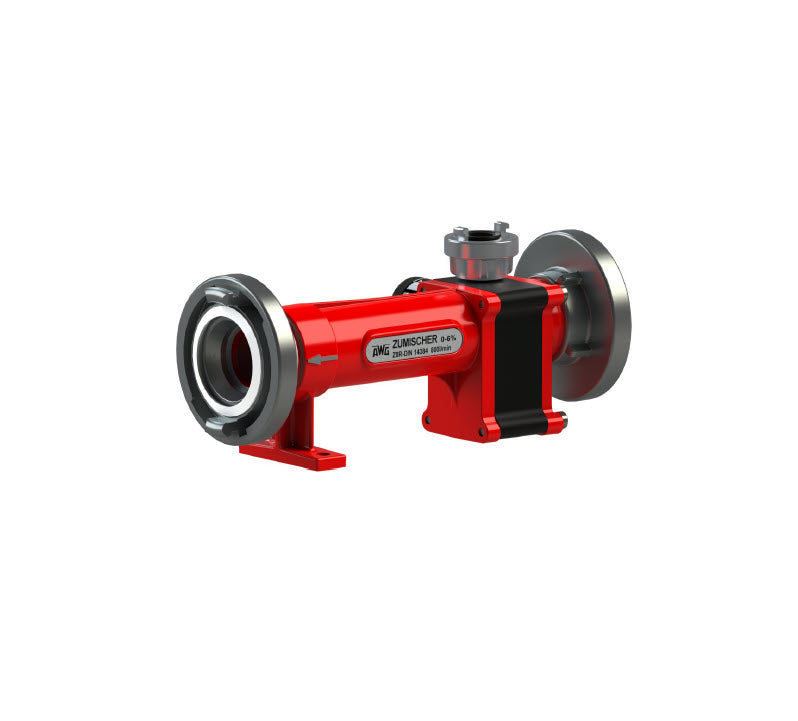

Foam Inductor L Type designed for Storz 65 connections, offering a 400 lpm flow rate and adjustable admixing from 0.5% to 6%. Ideal for firefighting systems, it ensures effective foam concentrate induction with a durable aluminium construction.

Product Name/Title: Foam Inductor L Type | Storz 65 Compatibility | 400 lpm Flow Rate | Adjustable Admixing by Firebox

Brand: Firebox

SKU: AWGZ4-INDUCTOR

Alternatively Known As: Foam Inductor L Type, Storz 65 Foam Inductor, AWG Foam Inductor Z4, Firebox Foam Inductor

Technical Specifications
  • System Outlet: Storz 65
  • System Inlet: Storz 65
  • Nominal size: Z4
  • Material adapter: Aluminium
  • Reference pressure p1: 5 bar
  • Flow rate at reference pressure p1: 400 lpm
  • Max permissible operating pressure: 16 bar
  • Admixing rate: 0.5% to 6%
  • Dimensions (H x L x W): 152mm x 355mm x 140mm
  • Weight: 2.4 kg
Key Features
  • Lightweight 'L'-type foam inductor design without handle
  • Admixing rate adjustable between 0.5% and 6%, with option to turn off
  • Operates on the Venturi principle for effective foam concentrate induction
  • Constructed with aluminium adapter for durability
  • Compatible with Storz 65 inlet and outlet connections
Professional Installation Requirements
  • Installation should be performed by qualified fire protection system professionals to ensure compliance with safety standards and optimal performance.
Applications
  • Used in firefighting systems for foam concentrate induction
  • Suitable for lithium-ion battery extinguishing systems
  • Applicable in fire suppression setups requiring precise foam admixture
Standards & Compliance
  • AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
  • Efficient foam concentrate usage reduces chemical waste
  • Lightweight design minimizes material use and transport emissions
Warranty Information

12 months warranty against manufacturing defects.

Available Now

The Firebox AWG 400lpm Inductor L Z4 - Storz 65 is available now for immediate purchase. Ideal for use in fire suppression systems requiring reliable foam induction.
