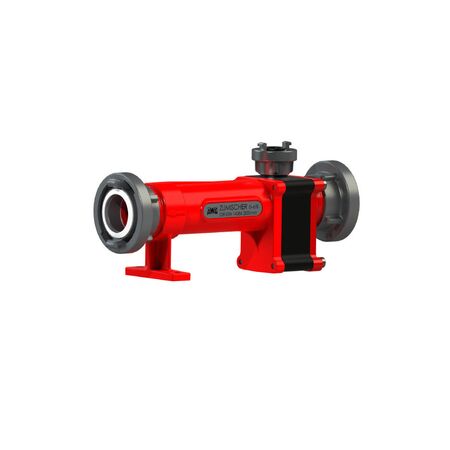

Foam Inductor Storz 65 | 200 lpm Flow Rate | Adjustable Admixing Rate | Lightweight Design by Firebox
Foam inductor with Storz 65 connections and 200 lpm flow rate—ideal for firefighting systems requiring foam concentrate induction. Built for professionals, it features an adjustable admixing rate of 0.5% to 6% and operates on the Venturi principle for effective performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Foam Inductor Storz 65 | 200 lpm Flow Rate | Adjustable Admixing Rate | Lightweight Design by Firebox
Brand: Firebox
SKU: AWGZ2-INDUCTOR
Alternatively Known As: Foam Inductor, Foam Concentrate Inductor, Fire Extinguisher Inductor, Storz 65 Foam Inductor
Technical Specifications
- System Outlet: Storz 65
- System Inlet: Storz 65
- Nominal size: Z2
- Material adapter: Aluminium
- Reference pressure p1: 5 bar
- Flow rate at reference pressure p1: 200 lpm
- Max permissible operating pressure: 16 bar
- Admixing rate: 0.5% to 6%
- Dimensions (H x L x W): 152mm x 355mm x 140mm
- Weight: 2.4 kg
Key Features
- Lightweight 'L'-type foam inductor design without the need for a handle
- Admixing rate adjustable between 0.5% and 6%, with option to turn off
- Operates on the Venturi principle for effective foam concentrate induction
- Made with aluminium adapter for durability
- Max permissible operating pressure of 16 bar
Professional Installation Requirements
- Installation and maintenance should be performed by qualified fire protection professionals to ensure compliance and safety.
Applications
- Used in firefighting systems for liquid extinguishing agent additives or foam concentrate induction
- Suitable for lithium-ion battery extinguishers
- Compatible with firefighting equipment requiring Storz 65 connections
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Enables efficient use of foam concentrates reducing waste
- Supports effective firefighting to minimize environmental damage from fires
Warranty Information
12 months warranty.
Available Now
The Firebox AWG 200lpm Inductor L Z2 - Storz 65 is available now for immediate purchase. Ideal for firefighting systems requiring reliable foam induction.
