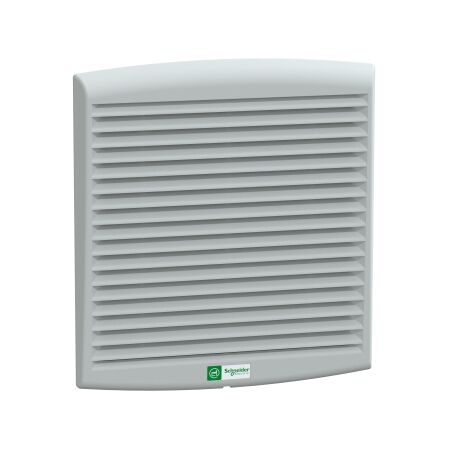

Forced Ventilation Fan IP54 | 165m3/h | 230V with Grille & Filter by Clipsal
Forced ventilation fan with IP54 rating and 165m3/h airflow—ideal for industrial and commercial spaces. Built for efficient air circulation, with 230V power and included grille and G2 filter.
Sign in
Please login to continue to your account.
Product Name/Title: ClimaSys, ClimaSys forced vent, IP54, 165m3/h, 230V, with outlet grille and filter G2
Brand: Clipsal
SKU: NSYCVF165M230PF
Alternatively Known As: ClimaSys Ventilation Fan, Forced Vent Fan, Industrial Ventilation System
- Rated current: 0.12 A at 50 Hz, 0.94 A at 60 Hz
- Input voltage: 230 V 50/60 Hz
- Power consumption: 16.3 W at 50 Hz, 14.3 W at 60 Hz
- Noise level: 50...51 dB
- Bearing type: ball
- Maximum pressure: 50 Pa
- Dimensions (H x L x W): 268mm x 104mm x 248mm
- Weight: 1.14 kg
- IP54 rated for protection against dust and water.
- Airflow rate of 165 m3/h at 50 Hz.
- Includes outlet grille and G2 filter.
- Professional installation is recommended for optimal performance and safety.
- Industrial: Ventilation for factories and warehouses
- Commercial: Offices and retail spaces requiring air circulation
- Complies with AS/NZS 3000 for electrical installations.
- Complies with relevant environmental regulations.
18 months warranty against manufacturing defects.
The ClimaSys Forced Ventilation Fan is available now for immediate purchase. Ideal for industrial and commercial ventilation needs.
