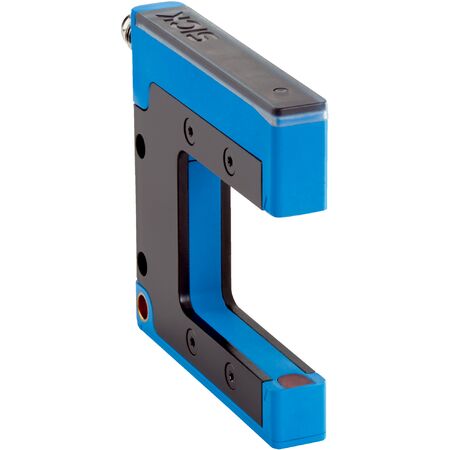

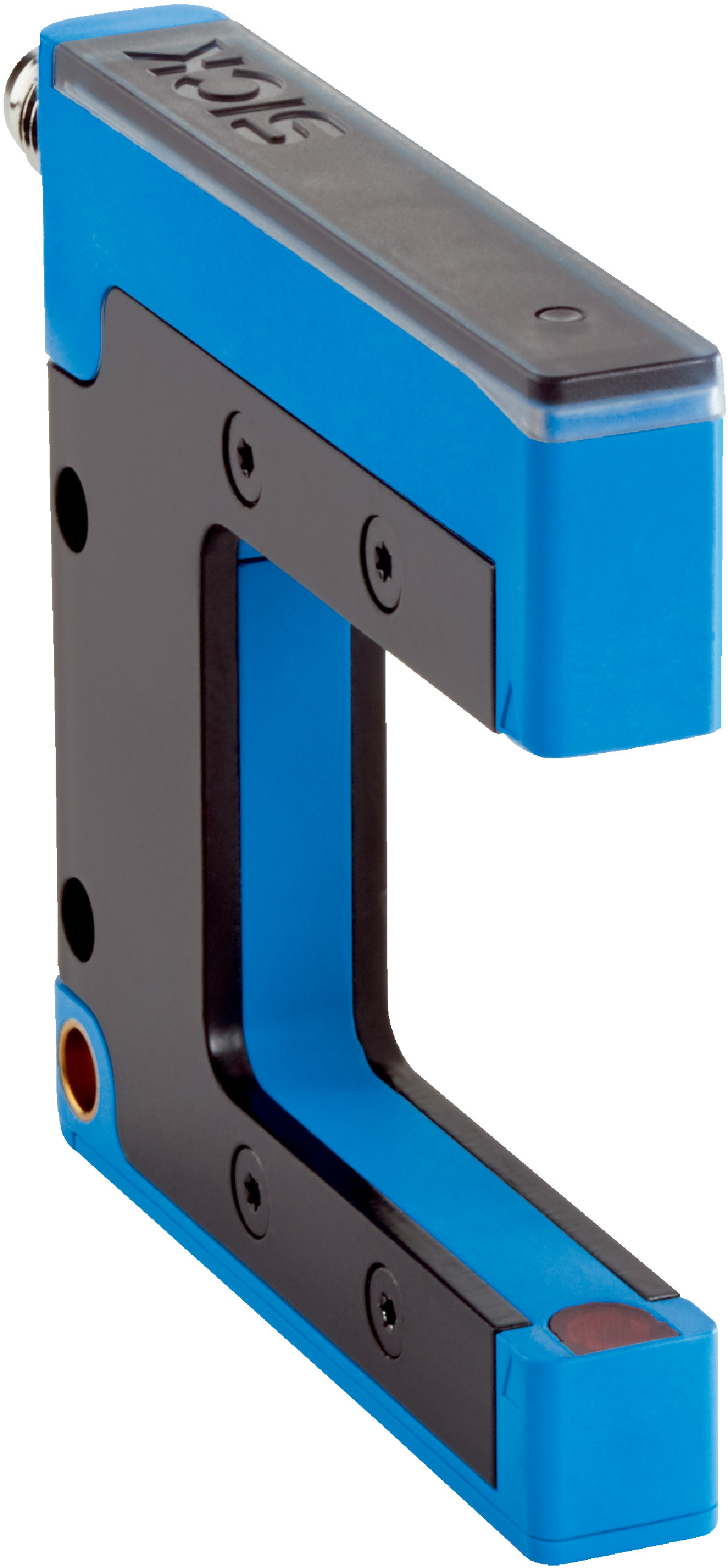

Fork Sensor WFE-030040B321 | IP67 Rated | 5 kHz Switching Frequency | Fast Response Time | by SICK
The WFE-030040B321 Fork Sensor is designed for precise object detection in industrial automation, featuring a fork width of 30 mm and a depth of 40 mm. With a high switching frequency of 5 kHz and a fast response time of ≤ 100 µs, this sensor ensures reliable performance in safety and monitoring applications. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for manufacturing lines and precision measurement tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 30 mA
- Switching frequency: 5 kHz
- Response time: ≤ 100 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Protection class: III
- Connection type: Connector M8, 3-pin
- Dimensions (H x L x W): 59mm x 61mm x 10mm
- Weight: 0.1 kg
Key Features
- Fork width of 30 mm and fork depth of 40 mm for precise object detection
- Minimum detectable object size of 0.5 mm
- Red visible LED light source
- Push-pull PNP/NPN switching output with dark switching mode
- High switching frequency of 5 kHz and fast response time ≤ 100 µs
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected circuitry
- LED indicators for power and switching status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Precision measurement in packaging and assembly
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 30 mA current draw
- Durable ABS coated carbon steel housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WFE-030040B321 Fork Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
