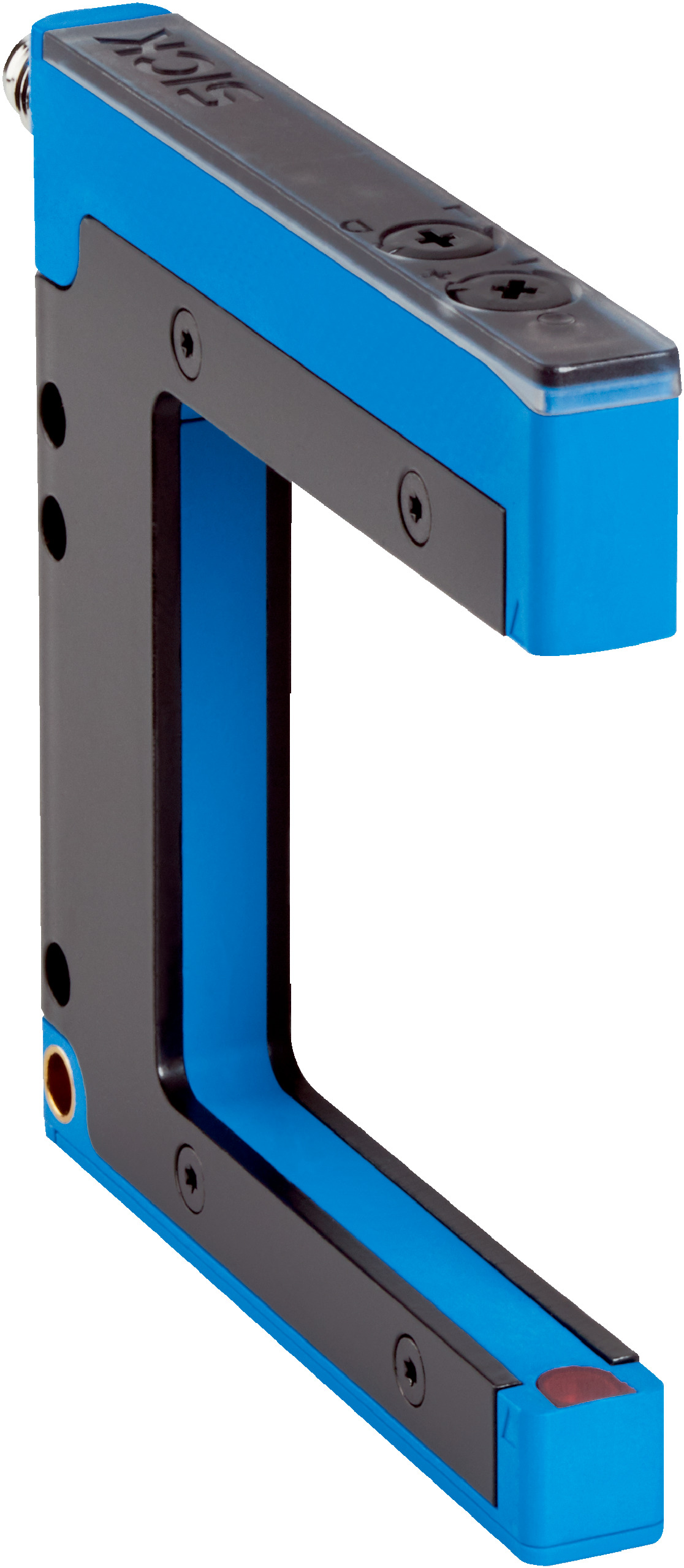

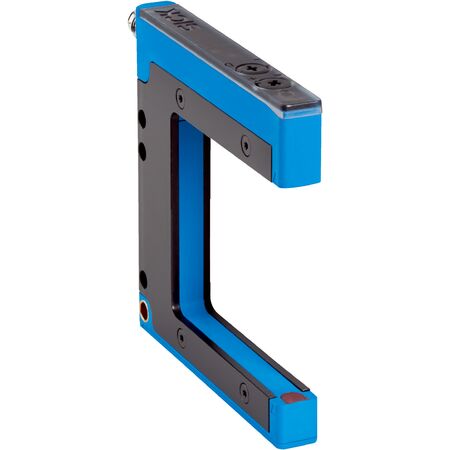

Fork Sensor WFE-050060B337 | Red LED Light Source | IP67 Rated | 5 kHz Switching Frequency | by SICK
The WFE-050060B337 Fork Sensor is designed for precise object detection in industrial automation, featuring a red visible LED light source and a high switching frequency of 5 kHz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety and presence detection in manufacturing lines and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 30 mA
- Switching frequency: 5 kHz
- Response time: ≤ 100 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Switching mode: Light/dark switching
- Switching output hysteresis: < 0.1 mm
- Initialization time: 100 ms
- Enclosure rating: IP67
- Housing material: ABS coated carbon steel
- Connection type: Connector M8, 3-pin
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 79mm x 79mm x 10mm
- Weight: 0.1 kg
Key Features
- Red visible LED light source
- Potentiometer for light/dark switching adjustment
- High switching frequency of 5 kHz
- Push-pull PNP/NPN switching output
- IP67 rated enclosure for dust and water protection
- Short-circuit and reverse polarity protected
- LED indicators for power and switching status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Packaging and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 30 mA current draw
- Durable ABS coated carbon steel housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WFE-050060B337 Fork Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
