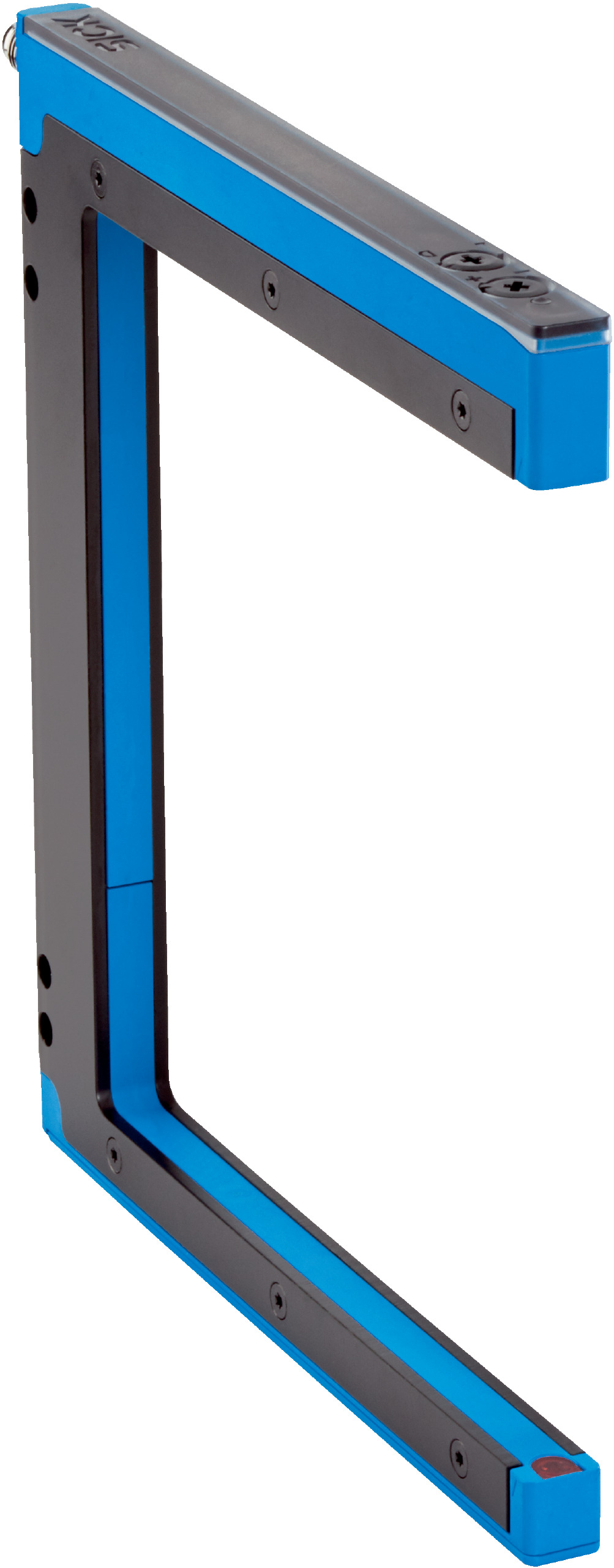

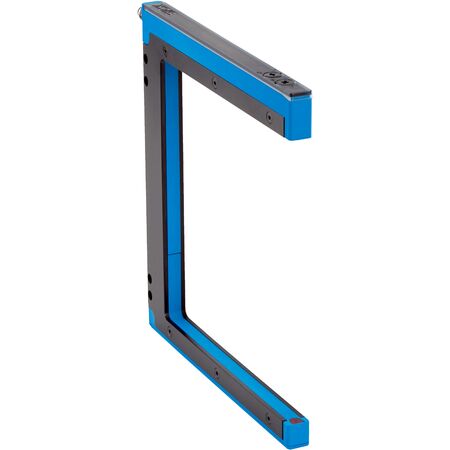

Fork Sensor WFE-120120B337 | IP67 Rated | 5 kHz Switching Frequency | 0.5 mm Detection | by SICK
The WFE-120120B337 Fork Sensor is designed for precise object detection in industrial automation, featuring a fork width and depth of 120 mm and a minimum detectable object size of just 0.5 mm. With a high switching frequency of 5 kHz and a response time of ≤ 100 µs, this sensor ensures reliable performance in safety and presence detection applications, making it ideal for manufacturing lines and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 30 mA
- Switching frequency: 5 kHz
- Response time: ≤ 100 µs
- Switching output: Push-pull PNP/NPN, max output current 100 mA
- Switching mode: Light/dark switching with potentiometer adjustment
- Switching output hysteresis: < 0.2 mm
- Initialization time: 100 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: ABS coated carbon steel
- Connection type: M8, 3-pin connector
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 149mm x 143mm x 10mm
- Weight: 0.19 kg
Key Features
- Fork width of 120 mm and fork depth of 120 mm for precise detection
- Minimum detectable object size of 0.5 mm
- Red visible LED light source
- Potentiometer adjustment for light/dark switching
- High switching frequency of 5 kHz with response time ≤ 100 µs
- Push-pull PNP/NPN switching output with short-circuit protection
- IP67 rated enclosure for dust and water protection
- Robust ABS coated carbon steel housing
- LED indicators for power and output status
- Wide ambient operating temperature range from -20 °C to +60 °C
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 30 mA current draw
- Durable construction reduces waste and replacement frequency
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK WFE-120120B337 Fork Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
