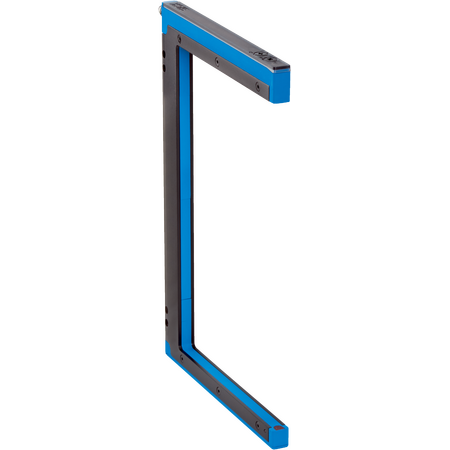

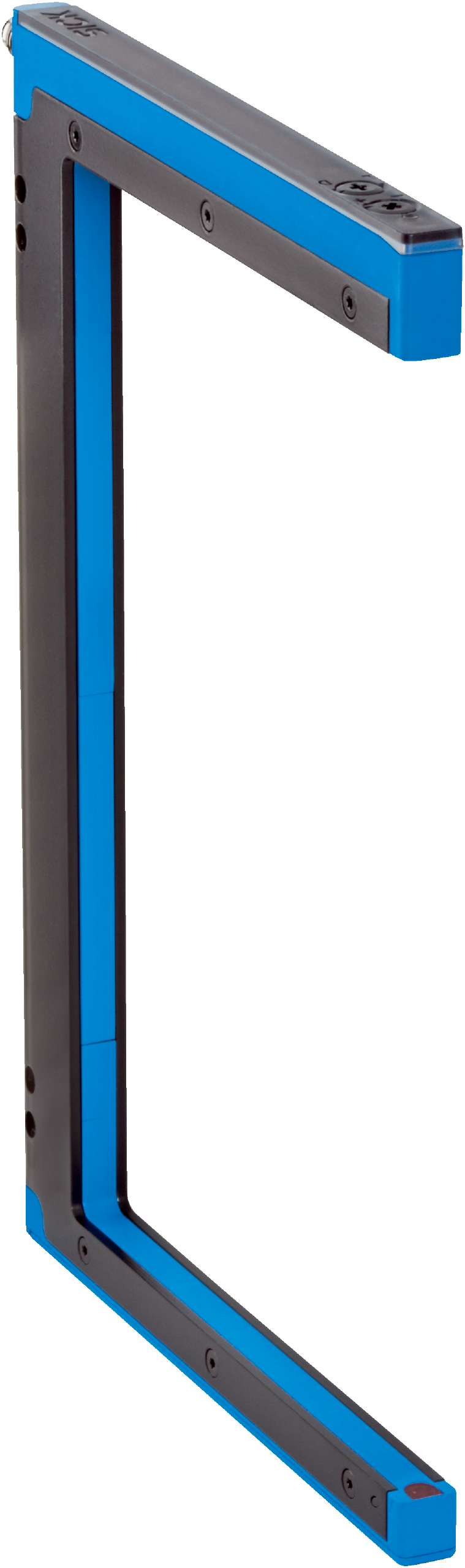

Fork Sensor WFE-180120B337 | 180mm Fork Width | IP67 Rated | 5kHz Switching Frequency | by SICK
The WFE-180120B337 Fork Sensor is designed for precise object detection in industrial automation, featuring a 180mm fork width and a high switching frequency of 5 kHz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for safety monitoring in manufacturing lines and material handling systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fork Sensor, Photoelectric Fork Sensor, SICK Fork Sensor WFE-180120B337
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 30 mA
- Switching frequency: 5 kHz
- Response time: ≤ 100 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Housing material: ABS coated carbon steel frame
- Connector: M8, 3-pin
- Dimensions (H x L x W): 209mm x 143mm x 10mm
- Weight: 0.245 kg
Key Features
- Fork width of 180 mm and fork depth of 120 mm
- LED visible red light source for detection
- Minimum detectable object size of 0.5 mm
- LED indicators for power and status switching output
- Potentiometer adjustment for light/dark switching
- High switching frequency of 5 kHz with response time ≤ 100 µs
- Push-pull PNP/NPN switching output with short-circuit protection
- IP67 rated enclosure for dust and water protection
- Robust ABS coated carbon steel housing
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 30 mA current draw
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WFE-180120B337 Fork Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
