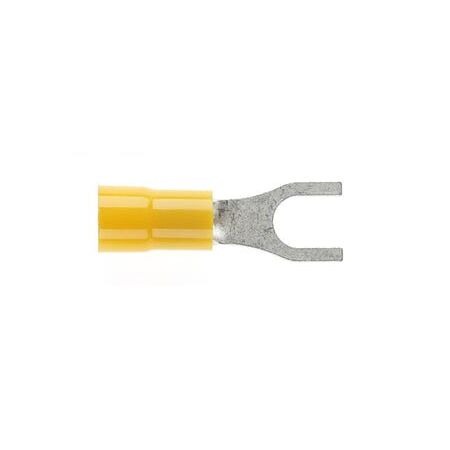

Fork Terminal Insulated 0.2-0.5mm2 M5 Yellow Double Grip Cabac

BRAND: CABAC
SKU: FS0.3-5DG
$20.00 List price: $30.00
100 PAK ($0.20 per PAK)
+ −
30 Days Return Electricians Unlock Trade Access
Cabac insulated forked spade terminal, 0.2-0.5mm2, M5, yellow. Ideal for screw terminal connections.
Technical Specifications
  • Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
  • Tensile Strength (Quick Connect Range): 580 MPa
  • Ductile Rating (Quick Connect Range): 6% min
  • Final Metal State (Quick Connect Range): Annealed
  • Working Temperature: Pre-Insulated -40°C to +105°C, Brass 145°C, Tin plated 160°C
  • Conductive Material (Except Quick Connect Range): Copper 99.9% Pure
  • Tensile Strength (Except Quick Connect Range): 200 MPa
  • Ductile Rating (Except Quick Connect Range): 35% min
  • Final Metal State (Except Quick Connect Range): Fully Annealed
  • Oxygen Content: 50ppm max
  • Total Conductivity: 99.5% IACS
  • Total Resistivity: 1.738 micro-ohm cm
  • Electroplating Material: Tin
  • Tin Content: 99.9%
  • Plating Thickness: 2.5 microns
  • Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
  • Breakdown Voltage: 1.5kV (min)
  • Insulation Resistance: Above 100 meg ohms
  • Working Voltage: Up to 300V AC/DC
  • Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
  • Nominal Pull Out Force varies by wire size from 4.6 kg to 35.2 kg
  • Dimensions (H x L x W): 20mm x 30mm x 10mm
  • Weight: 0.1 kg
Key Features
  • High quality product meeting international standards
  • Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
  • Long term electrical integrity
  • Voltage rating 300V
  • Full technical backup including quality assurance
  • Conforms to AS 3169 and AS 4437
  • Pre-insulated with PVC insulation
  • Recommended crimping with KTC05 tool
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure proper crimping and secure connections using the KTC05 tool.
Applications
  • Electrical wiring and cable terminations for fine conductors in the 0.2 to 0.5mm range
  • Suitable for use in residential, commercial, and industrial electrical installations
  • Ideal for use with pre-insulated cables requiring secure and reliable connections
Standards & Compliance
  • AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste
  • Pre-insulated design improves safety and reduces risk of electrical faults
Warranty Information

Warranty against manufacturing defects as per Cabac standard policy. Please refer to supplier for detailed warranty terms.

Available Now

The Cabac Forked Spade 5mm Yellow DG terminal is available for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable cable terminations.


FAQ

Q: What conductor size is this fork terminal designed for?
A: It is designed for conductors in the 0.2-0.5mm² range with an M5 stud connection.

Q: Does this fork terminal comply with Australian standards?
A: Yes. The product is manufactured to AS/NZS 3123 for industrial plugs and socket-outlets and conforms to AS 3169 and AS 4437 as listed in the specifications.


Use a forked spade terminal 0.5-1.6mm2 M5 Red Double Grip when your installation requires a larger conductor size with the same double-grip design.

Install a fork terminal insulated 1.0-2.6mm2 M5 Blue Double Grip for applications using larger conductors with an M5 stud connection.

Pair with a forked spade terminal non-insulated 2.5-6.0mm2 M5 where an uninsulated fork termination is required.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.
