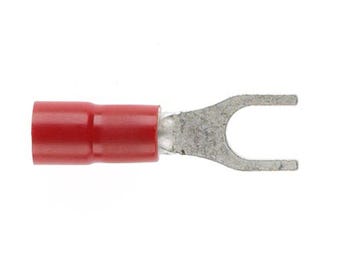

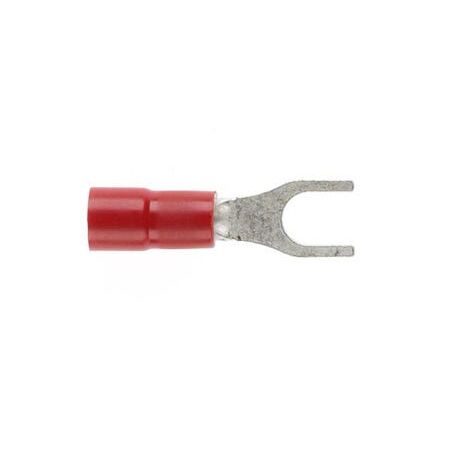

Forked Spade Terminal 3mm | Double Grip | Red | High Vibration by Cabac
Forked spade terminal with 3mm size and double grip design—ideal for high vibration environments. Built for automotive, aerospace, and marine applications, with enhanced vibration resistance and improved wire insulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Forked Spade 3mm Red Dg
Brand: Cabac
SKU: FS1.25-3DG
Alternatively Known As: Pre-Insulated Forked Spade Terminal, Double Grip Spade Terminal, High Vibration Forked Terminal, Red Forked Spade Connector
Technical Specifications
- Pre-Insulated Forked Spade Terminal for 0.5-1.6mm cable.
- Double grip design for enhanced stability in high vibration environments.
- Additional copper sleeve for superior vibration resistance and improved wire insulation.
- Copper terminal body with PVC insulation.
- Operating temperature up to 75°C.
- Operating voltage of 600V.
- Manufactured to AS 3169 and AS 4437 standards.
- RoHS and REACH compliant.
- Dimensions (H x L x W): 30mm x 40mm x 10mm
- Weight: 0.1 kg
Key Features
- Double grip design specifically engineered to withstand high vibration conditions.
- Additional copper sleeve enhances vibration resistance and improves wire insulation.
- Constructed with a copper terminal body and PVC insulation for reliable electrical conductivity and insulation.
- Operates within a temperature range of up to 75°C.
- Operating voltage of 600V.
- Manufactured in strict accordance with international standards including AS 3169 and AS 4437.
- RoHS and REACH compliant.
Professional Installation Requirements
- It is crucial to crimp the terminals onto the conductor using a quality crimper specifically designed for this terminal type to ensure a secure and long-lasting connection.
Applications
- Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems where high vibration levels are prevalent.
- Heavy Machinery and Equipment: Suitable for connections in industrial machinery and equipment subject to constant vibrations.
- Marine Applications: Well-suited for marine environments where vibrations from engines and machinery are common.
- Power Distribution Systems: Reliable for use in power distribution systems where stability and durability are essential.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, restricting hazardous substances to reduce environmental impact.
- REACH compliant, ensuring chemical safety and reduced environmental harm.
Warranty Information
Warranty coverage subject to manufacturer terms and conditions. Typically includes defects in materials and workmanship.
Available Now
The Cabac Forked Spade 3mm Red Double Grip Terminal is available now for immediate purchase. Ideal for high vibration electrical connection applications in automotive, aerospace, marine, heavy machinery, and power distribution systems.
