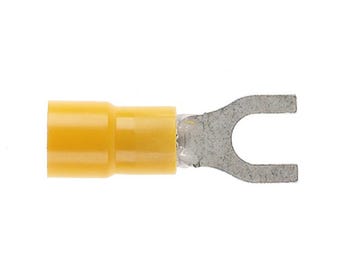

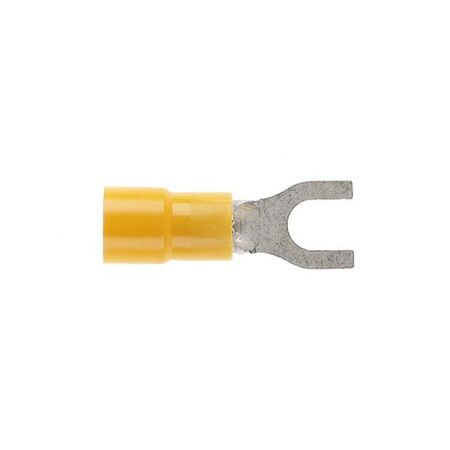

Forked Spade Terminal 5mm | Double Grip | Yellow | 2.5-6.0mm Cable by Cabac
Forked spade terminal with double grip design and yellow PVC insulation—ideal for high vibration applications. Built for automotive, aerospace, and industrial use, offering enhanced stability and superior wire insulation for 2.5-6.0mm cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Forked Spade 5mm Yellow Dg - 2.5-6.0mm cable
Brand: Cabac
SKU: FS5.5-5DG
Alternatively Known As: Double Grip Forked Spade Terminal, Pre-Insulated Forked Spade Connector, High Vibration Forked Terminal, Yellow Forked Spade Connector
Technical Specifications
- Double grip design for enhanced vibration resistance.
- Additional copper sleeve for improved wire insulation.
- Copper terminal body with PVC insulation.
- Operating temperature: up to 75°C.
- Operating voltage: 600V.
- Manufactured to AS 3169 and AS 4437 standards.
- RoHS and REACH compliant.
- Dimensions (H x L x W): 50mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Double grip design engineered to withstand high vibration conditions.
- Additional copper sleeve enhances vibration resistance and improves wire insulation.
- Copper terminal body with PVC insulation for reliable electrical conductivity and insulation.
- Operates within a temperature range up to 75°C.
- Operating voltage of 600V.
- Manufactured in strict accordance with international standards AS 3169 and AS 4437.
- RoHS and REACH compliant.
Professional Installation Requirements
- Crimp terminals onto conductors using a quality crimper designed for this terminal type to ensure a secure and long-lasting connection.
Applications
- Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems with high vibration levels.
- Heavy Machinery and Equipment: Suitable for connections in industrial machinery and equipment subject to constant vibrations.
- Marine Applications: Well-suited for marine environments with vibrations from engines and machinery.
- Power Distribution Systems: Reliable for use in power distribution systems requiring stability and durability.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, restricting hazardous substances to reduce environmental impact.
- REACH compliant, ensuring chemical safety and environmental protection.
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Forked Spade 5mm Yellow DG terminal is available for immediate purchase. Ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.
