Forklift Collision Warning System BAS3501-E | IP65/IP67 Rated | 2D LiDAR Sensor | Configurable Alarm Levels | by SICK

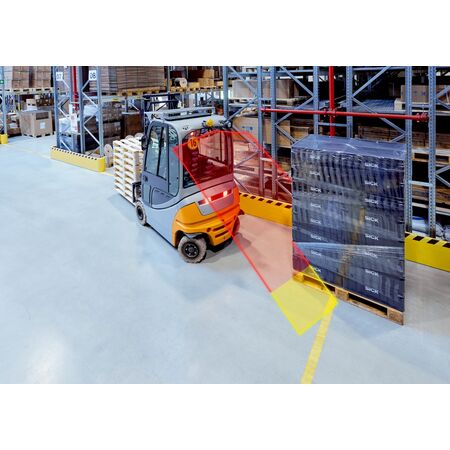

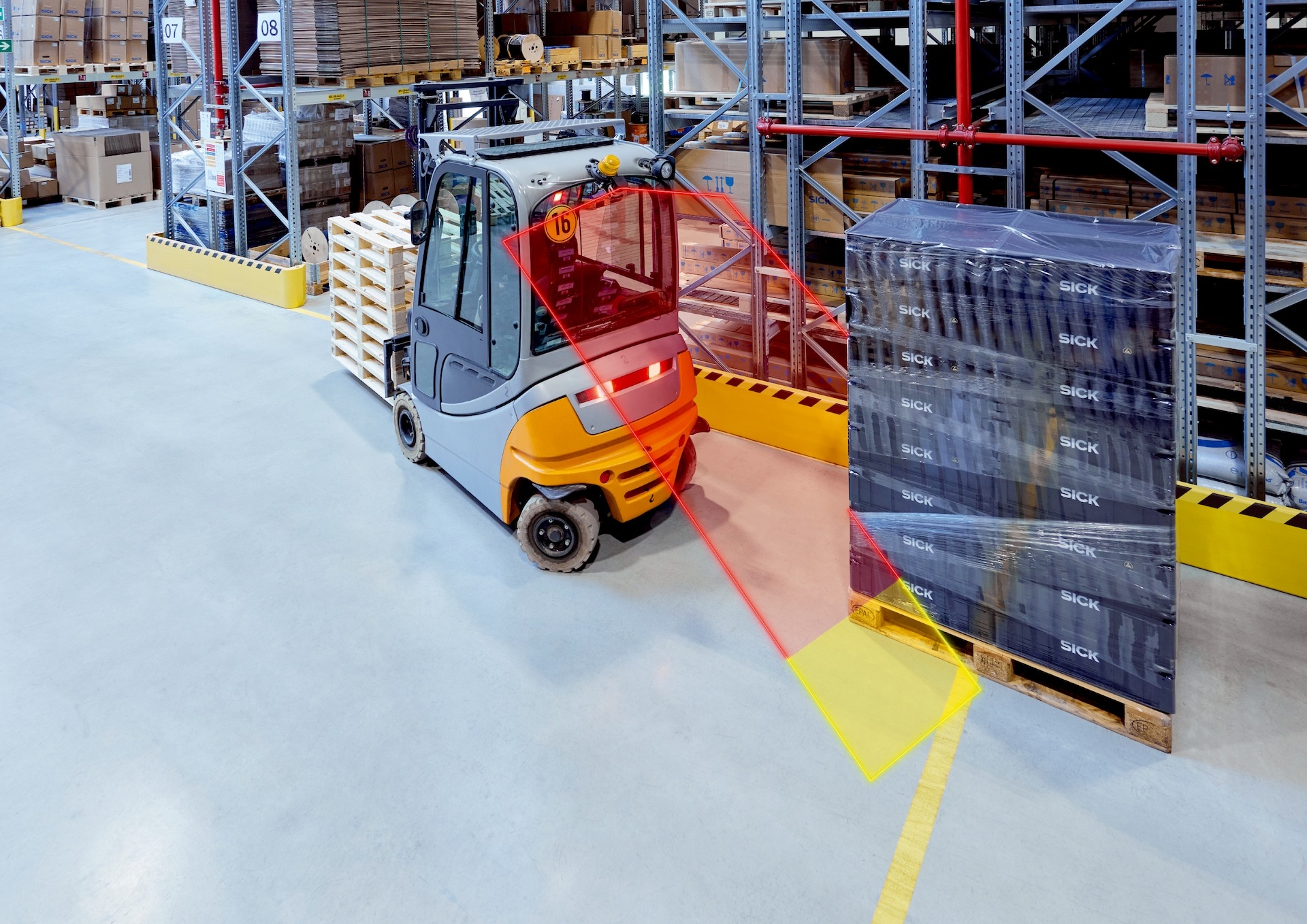

The Forklift Collision Warning System BAS3501-E enhances safety with visual and acoustic warnings, featuring a robust IP65/IP67 rated enclosure and a 2D LiDAR sensor. Ideal for electric forklifts in both indoor and outdoor environments, it operates in temperatures from -20°C to +50°C, ensuring reliable performance. With configurable alarm levels up to 98 dB, this system is designed to prevent rear-end collisions effectively.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power consumption: 10 W (≤ 13 W)
- Machine operating voltage: 24 V to 72 V
- Enclosure rating: IP65 / IP67
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
- Number of sensors: 1
- Number of laserscanners: 1
- Warning zones: 2
- Ambient operating temperature: -20°C to +50°C
- Ambient storage temperature: -25°C to +55°C
- Weight: 1.53 kg without connecting cables
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.53 kg
Key Features
- Visual and acoustic collision warning with configurable audible alarm levels up to 98 dB
- IP65 / IP67 rated enclosure for robust protection
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Includes 2D LiDAR sensor TiM351 and control module assembly
- Signal light bar with tri-color visual warning
- Supports USB and HMI interfaces for parameterization and signal light bar control
- Operates in ambient temperatures from -20°C to +50°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with vehicle systems and optimal safety performance.
Applications
- Indoor and outdoor areas up to 8 meters
- Electric forklifts vehicle rear end collision warning
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accident-related environmental impact
- Energy-efficient operation with low power consumption of 10 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BAS3501-E collision warning system is available for immediate purchase, ideal for enhancing safety on electric forklifts in indoor and outdoor environments.
