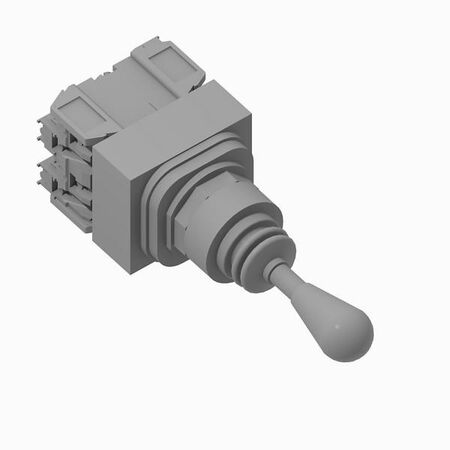

Four Way Toggle Switch | 30mm Mounting Size | Spring Return Mechanism | 1 NO & 1 NC Contacts | by Allen-Bradley
The Four Way Toggle Switch is designed for versatile control with a 30mm mounting size and four-way operation (up, left, right, down). Ideal for industrial control panels and automation systems, it features a spring return mechanism and finger guards for safety. With 1 Normally Open and 1 Normally Closed contact, this switch ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Switch Type: Toggle
- Mounting Size: 30mm
- Operation: Four way (Up, Left, Right, Down)
- Contact Configuration: 1 NO (Normally Open), 1 NC (Normally Closed)
- Spring Return: All directions
- No block in center position
- Safety: Finger guards on terminals
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- 30mm four-way toggle switch with up, left, right, down operation
- All spring return mechanism
- 1 Normally Open (NO) and 1 Normally Closed (NC) standard contacts
- No block in the center position
- Finger guards on terminals for safety
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and safety compliance.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems requiring multi-directional input
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Spring return mechanism ensures reliable operation reducing energy waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCT4T8AAXX Four Way Toggle Switch is available now for immediate purchase. Ideal for industrial and automation control applications.
