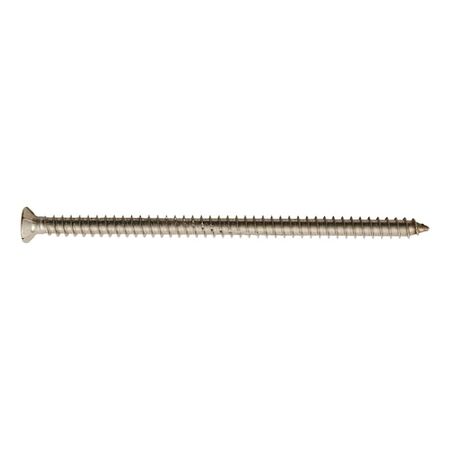

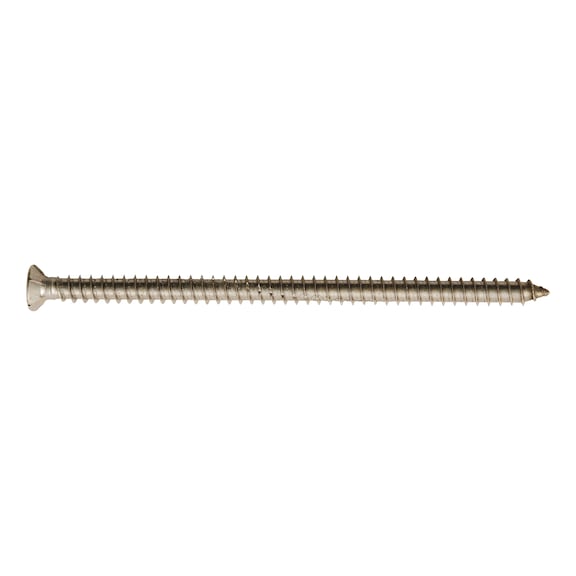

Frame Screw AMO III SCR CTRHD RW30 A2 | Self-Tapping Stainless Steel | Countersunk Milling Head | High Load Capacity | @Pack of 100 | by Wurth
Frame Screw AMO III SCR CTRHD RW30 A2 is a self-tapping stainless steel screw designed for high load capacity applications. With a countersunk milling head and a diameter of 12mm, it cuts its own thread through aerated concrete and wood, making it ideal for window frame installations. This screw is perfect for construction projects requiring reliable fastening and fire resistance, ensuring a flush finish and stress-free assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Frame Screw AMO III SCR CTRHD RW30 A2 | Self-Tapping Stainless Steel | Countersunk Milling Head | High Load Capacity | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 239130112
Alternatively Known As: Self-tapping frame screw, countersunk head screw, stainless steel construction screw, AMO III RW30 screw
Technical Specifications
- Length: 112 mm
- Thread diameter: 7.5 mm
- Material: Stainless steel A2
- Head type: Countersunk milling head
- Head diameter: 12 mm
- Internal drive: RW30
- Drill-hole diameter in window frame: 6 mm
- Nominal drill hole diameter: 6 mm
- Dimensions (H x L x W): 112mm x 112mm x 12mm
- Weight: 0.05 kg
Key Features
- Self-tapping stainless steel A2 screws
- Countersunk milling head with 12mm diameter
- Cuts its own thread through aerated concrete and wood, saving time and money
- Does not press workpieces together, acting as a stress-free spacer
- Flush finish due to countersunk head and milling ribs
- High load capacity
- Tested for extraction values, cross-load capacity, and fire resistance
- Fire resistant up to 120 minutes
Professional Installation Requirements
- Professional installation recommended to ensure correct fastening and compliance with building standards.
Applications
- Fixing in aerated concrete and wood
- Window frame installation
- Construction and building fastening requiring high load capacity and fire resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel material ensures long product life reducing waste
- Efficient installation reduces construction time and energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for detailed warranty terms.
Available Now
Wurth Frame Screw AMO III SCR CTRHD RW30 A2 75X112 100 PCS is available for immediate purchase, ideal for construction and window frame fastening applications.
