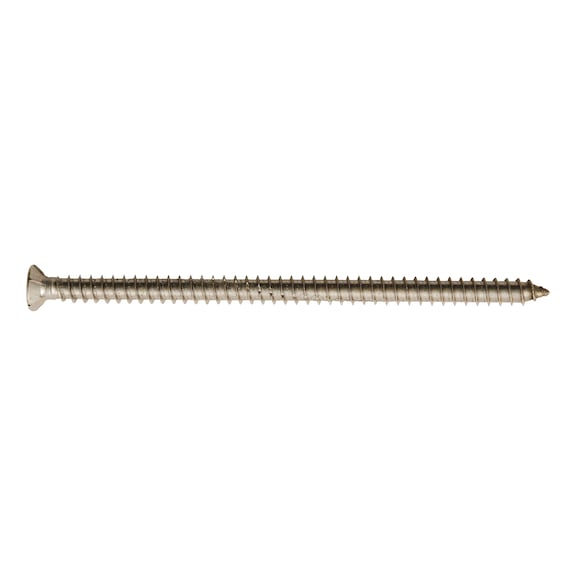

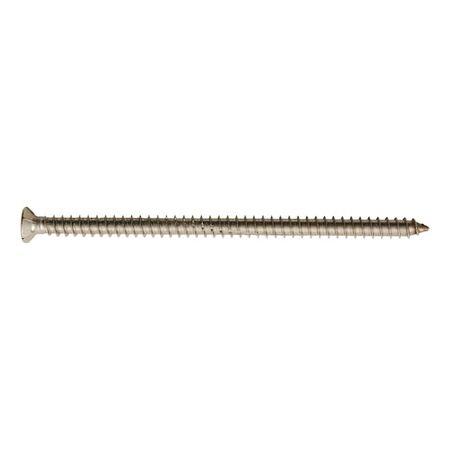

Frame Screw AMO III SCR CTRHD RW30 A2 | Self-Tapping | High Load Capacity | Countersunk Head | @Pack of 100 | by Wurth
Frame Screw AMO III SCR CTRHD RW30 A2 is a self-tapping screw designed for high load capacity applications. Ideal for construction and industrial use, it features a countersunk head for a flush finish and is made from durable stainless steel. This screw cuts its own thread through aerated concrete and wood, making installation efficient and stress-free, while also being fire resistant for up to 120 minutes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Frame Screw AMO III SCR CTRHD RW30 A2 | Self-Tapping | High Load Capacity | Countersunk Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 23913052
Alternatively Known As: Self-tapping frame screw, countersunk head screw, stainless steel construction screw, AMO III screw
Technical Specifications
- Length: 52 mm
- Thread diameter: 7.5 mm
- Material: Stainless steel A2
- Head type: Countersunk milling head
- Head diameter: 12 mm
- Internal drive: RW30
- Nominal drill hole diameter: 6 mm
- Dimensions (H x L x W): 52mm x 52mm x 12mm
- Weight: 0.05 kg
Key Features
- Self-tapping stainless steel screws with countersunk head (Ø 12mm)
- Cuts its own thread through aerated concrete and wood, saving time and money
- Does not press workpieces together, acting as a stress-free spacer
- Flush finish due to countersunk head and milling ribs
- High load capacity
- Tested for extraction values, cross-load capacity, and fire resistance
- Fire resistant up to 120 minutes
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Construction: Fixing in aerated concrete and wood
- Industrial: Assembly requiring high load capacity and fire resistance
- General: Fastening applications needing countersunk head screws
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel material reduces need for frequent replacements
- Efficient installation reduces waste and energy consumption
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Frame Screw AMO III SCR CTRHD RW30 A2 75X52 100 PCS is available for immediate purchase, ideal for construction and industrial fastening applications.
