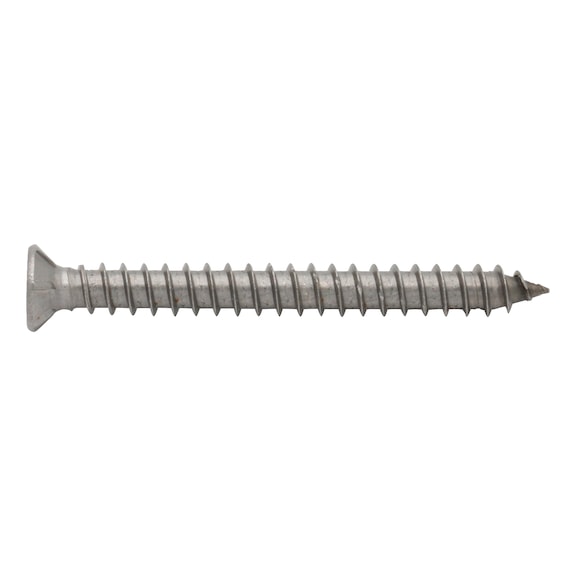

Frame Screw AMO III SCR CTRHD RW30 A2 | Stainless Steel | Countersunk Head | High Load Capacity | @Pack of 100 | by Wurth
Frame Screw AMO III SCR CTRHD RW30 A2 is designed for high load capacity applications, featuring a durable stainless steel construction and a countersunk head for a flush finish. Ideal for fixing in aerated concrete and wood, this self-tapping screw ensures efficient installation with its milling ribs and AW drive, making it perfect for construction projects that require fire-resistant fastening up to 120 minutes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Frame Screw AMO III SCR CTRHD RW30 A2 | Stainless Steel | Countersunk Head | High Load Capacity | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 23913072
Alternatively Known As: Self-tapping frame screw, countersunk head screw, stainless steel construction screw, AMO III screw
Technical Specifications
- Length: 72 mm
- Thread diameter: 7.5 mm
- Material: Stainless steel A2
- Head type: Countersunk milling head
- Head diameter: 12 mm
- Internal drive: AW30
- Dimensions (H x L x W): 72mm x 72mm x 12mm
- Weight: 0.05 kg
Key Features
- Self-tapping stainless steel screws with countersunk head (Ø 12mm)
- Milling ribs and AW drive for efficient installation
- Cuts its own thread through aerated concrete and wood, saving time and money
- Does not press workpieces together, acting as a stress-free spacer
- Flush finish due to countersunk head and milling ribs
- High load capacity
- Tested for extraction values, cross-load capacity, and fire resistance
- Fire resistant up to 120 minutes
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with safety standards.
Applications
- Fixing in aerated concrete and wood
- Construction and building applications requiring high load capacity
- Fire-resistant fastening needs up to 120 minutes
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel material ensures long product life reducing waste
- Efficient installation reduces energy and resource use on site
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for detailed warranty terms.
Available Now
Wurth Frame Screw AMO III SCR CTRHD RW30 A2 75X72 100 PCS is available for immediate purchase, ideal for construction and building fastening applications.
