Frame Screw AMO III SCR CTRHD RW30 A2 | Stainless Steel | High Load Capacity | Countersunk Milling Head | @Pack of 100 | by Wurth

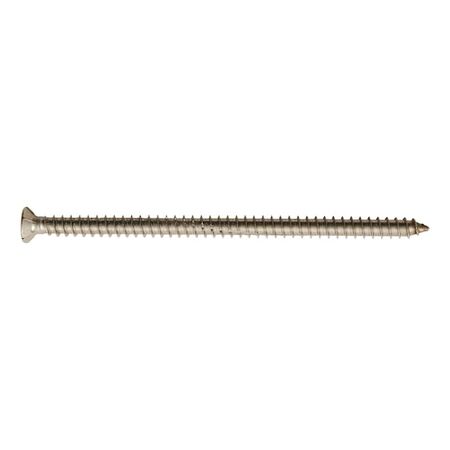

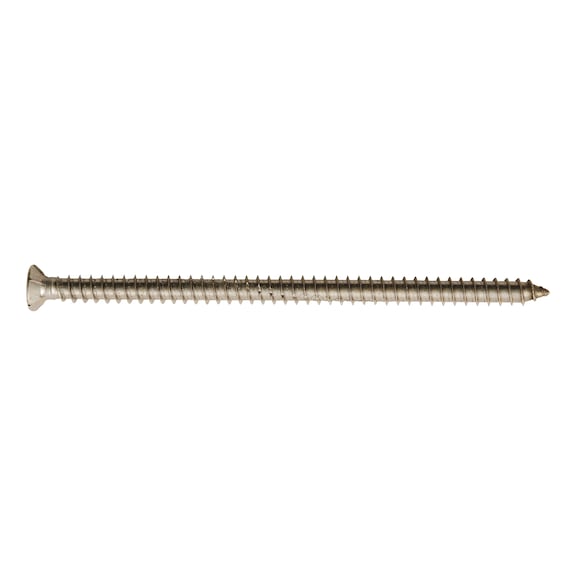

Frame Screw AMO III SCR CTRHD RW30 A2 is designed for high load capacity applications, featuring a stainless steel construction and a countersunk milling head. Ideal for fixing in aerated concrete and wood, this self-tapping screw cuts its own thread, saving time and ensuring a flush finish. Perfect for window frame installations and construction tasks requiring fire resistance and compliance with building standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Frame Screw AMO III SCR CTRHD RW30 A2 | Stainless Steel | High Load Capacity | Countersunk Milling Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 23913092
Alternatively Known As: Self-tapping frame screw, countersunk head screw, stainless steel construction screw, AMO III RW30 screw
Technical Specifications
- Length: 92 mm
- Thread diameter: 7.5 mm
- Material: Stainless steel A2
- Head type: Countersunk milling head
- Head diameter: 12 mm
- Internal drive: RW30
- Drill-hole diameter in window frame: 6 mm
- Nominal drill hole diameter: 6 mm
- Dimensions (H x L x W): 92mm x 92mm x 12mm
- Weight: 0.05 kg
Key Features
- Self-tapping stainless steel screws with countersunk milling head (Ø 12mm)
- Cuts its own thread through aerated concrete and wood, saving time and money
- Does not press workpieces together, acting as a stress-free spacer
- Flush finish due to countersunk head and milling ribs
- High load capacity
- Tested for extraction values, cross-load capacity, and fire resistance
- Fire resistant up to 120 minutes
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and compliance with building standards.
Applications
- Fixing in aerated concrete and wood
- Window frame installation
- Construction and building fastening tasks requiring high load capacity and fire resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel for long service life reducing replacement waste
- Fire resistance enhances building safety and sustainability
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
Wurth Frame Screw AMO III SCR CTRHD RW30 A2 75X92 100 PCS is available for immediate purchase, ideal for construction and window frame fastening applications.
