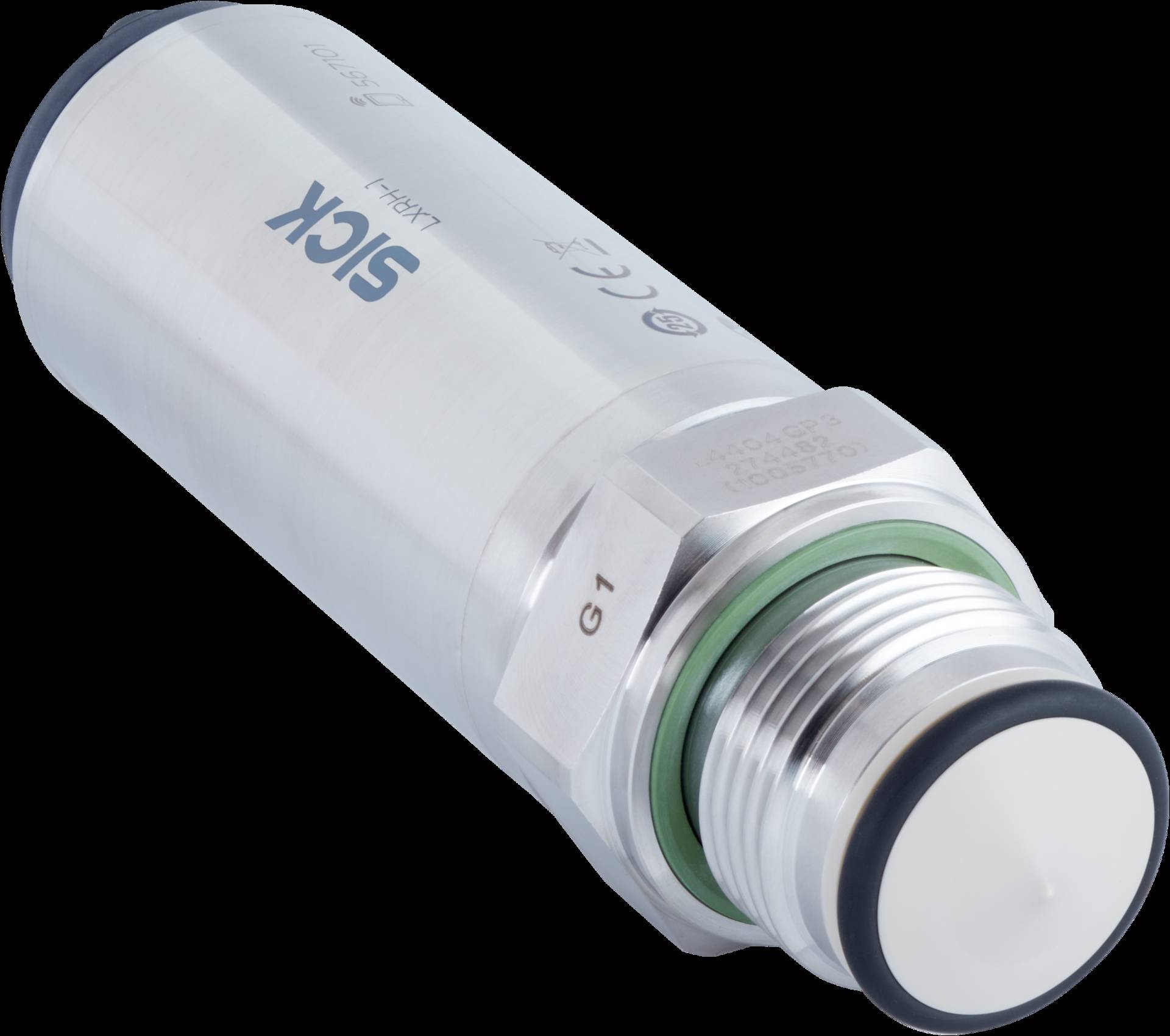

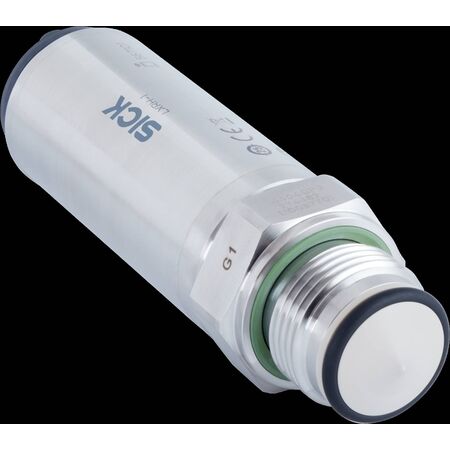

Free-Space Radar Level Sensor LXRH | 80 GHz Frequency | ±2 mm Accuracy | IP66/IP67/IP69 Rated | by SICK
The LXRH free-space radar level sensor is designed for hygienic applications, featuring an 80 GHz frequency and ±2 mm accuracy for precise level measurement. With a measuring range of 0 to 15 m and robust IP66/IP67/IP69 enclosure ratings, it's perfect for storage tanks and process vessels in the food and pharmaceutical industries. Its non-contact measurement principle simplifies installation and minimizes contamination risk.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Free-Space Radar Level Sensor LXRH | 80 GHz Frequency | ±2 mm Accuracy | IP66/IP67/IP69 Rated | by SICK
Brand: SICK
SKU: 6085722
Alternatively Known As: Free-space radar level sensor, hygienic level sensor, non-contact level sensor, radar level transmitter
Technical Specifications
- Frequency: 80 GHz free-space radar
- Accuracy: ±2 mm
- Measuring range: 0 to 15 m
- Process pressure: –1 to 16 bar
- Temperature range: –40 to +130 °C, CIP and SIP capable
- Enclosure rating: IP66, IP67, IP69
- Wetted parts: stainless steel 1.4435 / 316L, PEEK, EPDM
- Housing material: stainless steel 316L, PBT/PC
- Male connector material: plastic
- Bluetooth: Yes
- 360° status indicator: Yes
- Communication: IO-Link, optional WPAN
- Dimensions (H x L x W): 150mm x 50mm x 50mm
- Weight: 1.5 kg
Key Features
- Free-space radar sensor with 80 GHz frequency and ±2 mm accuracy
- Measuring range from 0 to 15 m with no dead zone
- Process pressure range from –1 to 16 bar
- Temperature range from –40 to +130 °C, CIP and SIP capable
- Enclosure ratings IP66, IP67, IP69 for robust protection
- IO-Link communication interface
- Optional WPAN and 360° status LED for easy status monitoring
- Numerous hygienic adapters for versatile applications
- Non-contact measurement principle simplifies installation and requires no calibration
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with hygienic process sensor setup and IO-Link configuration to ensure optimal performance and compliance.
Applications
- Storage tanks in food and pharmaceutical industries
- Process vessels
- Mixing, filling, and dosing systems
- Continuous level measurement of liquids and bulk materials in hygiene applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces contamination risk and product waste
- Durable stainless steel construction extends product life and reduces replacement frequency
- Energy-efficient radar technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LXRH free-space radar level sensor is available for immediate purchase, ideal for hygienic applications in food and pharmaceutical industries requiring precise and reliable level measurement.
