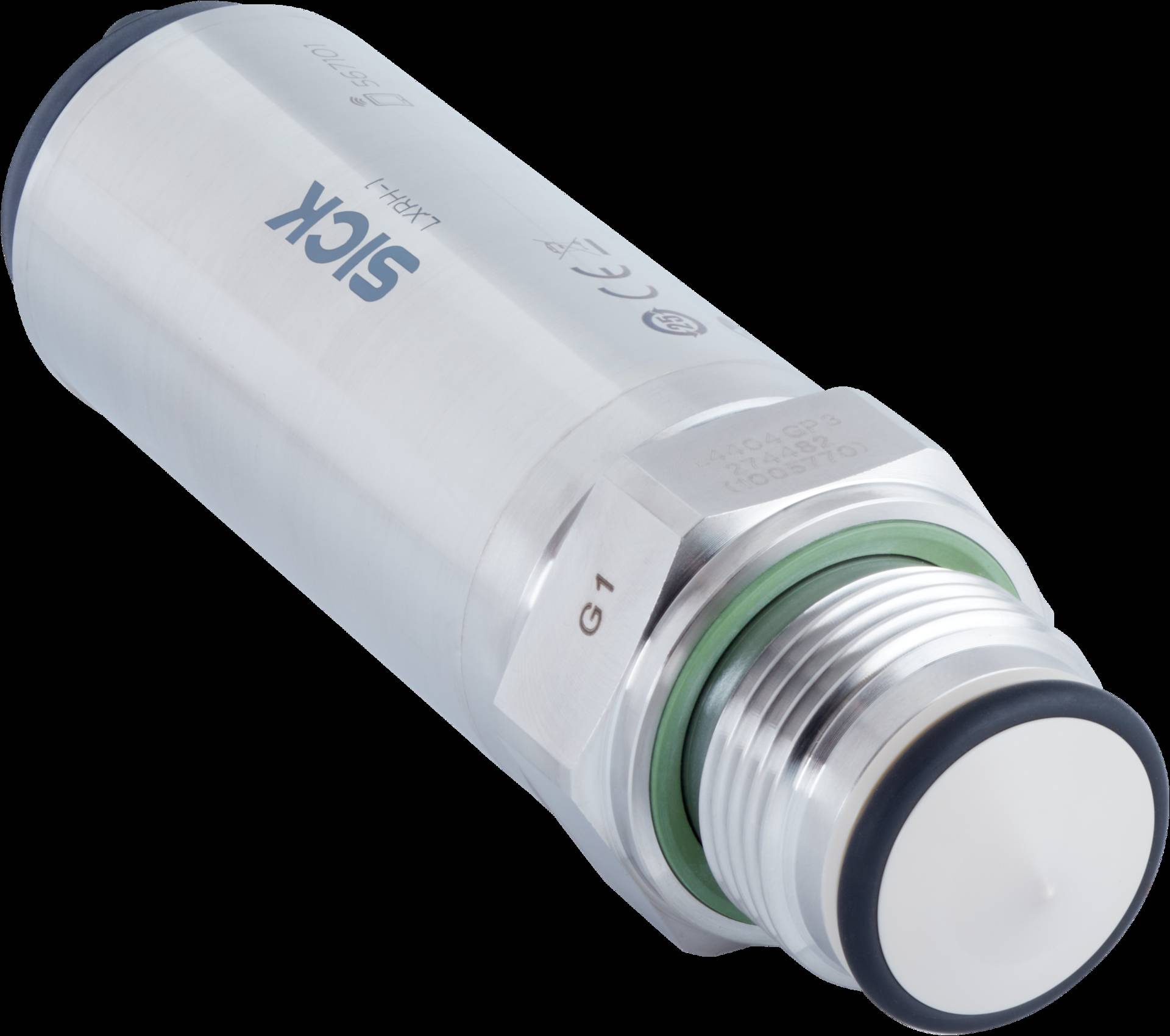

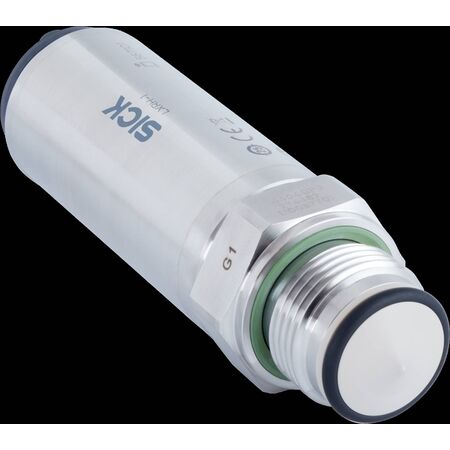

Free-Space Radar Level Sensor LXRH | 80 GHz Frequency | ±2 mm Accuracy | IP66/IP67/IP69 Rated | by SICK
The LXRH Free-Space Radar Level Sensor is designed for hygienic continuous level measurement in food and pharmaceutical industries. With an impressive measuring range of 0 to 15 m and ±2 mm accuracy, it operates under process pressures from –1 to 16 bar and temperatures from –40 to +130 °C. Its robust IP66/IP67/IP69 enclosure ensures durability, while the non-contact measurement principle simplifies installation and minimizes contamination risk.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Free-Space Radar Level Sensor LXRH | 80 GHz Frequency | ±2 mm Accuracy | IP66/IP67/IP69 Rated | by SICK
Brand: SICK
SKU: 6085720
Alternatively Known As: Free-space radar level sensor, hygienic level sensor, non-contact level sensor, radar level transmitter
Technical Specifications
- Frequency: 80 GHz free-space radar
- Accuracy: ±2 mm
- Measuring range: 0 to 15 m
- Process pressure: –1 to 16 bar
- Temperature range: –40 to +130 °C, CIP and SIP capable
- Enclosure rating: IP66, IP67, IP69
- Wetted parts: stainless steel 1.4435 / 316L, PEEK, EPDM
- Housing material: stainless steel 316L, PBT/PC
- Male connector material: plastic
- Communication: IO-Link, optional WPAN
- 360° status indicator LED
- Dimensions (H x L x W): 150mm x 50mm x 50mm
- Weight: 1.5 kg
Key Features
- Free-space radar sensor with 80 GHz frequency and ±2 mm accuracy
- Measuring range from 0 to 15 m with no dead zone
- Process pressure range from –1 to 16 bar
- Temperature range from –40 to +130 °C, CIP and SIP capable
- Enclosure ratings IP66, IP67, IP69 for robust protection
- IO-Link communication interface
- Optional WPAN and 360° status LED for easy status monitoring
- Numerous hygienic adapters for versatile applications
- Non-contact measurement principle simplifies installation and requires no calibration
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure hygienic sealing and correct sensor parameterization via IO-Link or WPAN.
Applications
- Storage tanks in food and pharmaceutical industries
- Process vessels
- Mixing, filling, and dosing systems
- Continuous level measurement of liquids and bulk materials in hygiene applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces contamination risk and product waste
- Durable stainless steel construction extends product life and reduces replacement frequency
- Energy-efficient radar technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LXRH Free-Space Radar Level Sensor is available for immediate purchase, ideal for hygienic continuous level measurement in food and pharmaceutical processing environments.
