French Standard 2P+E Shuttered Socket Outlet | 10A to 16A | Child-Safe Design | IP40 Protection | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 570021
$33.60 List price: $41.80
+ −
30 Days Return Delivery Options

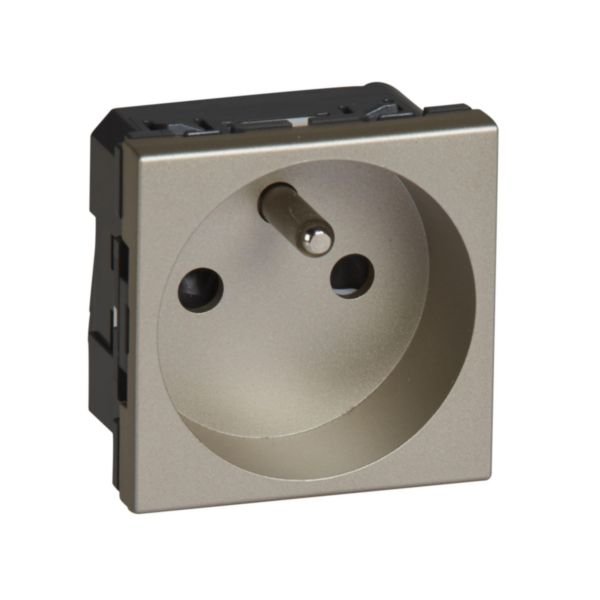

The French Standard 2P+E Shuttered Socket Outlet is designed for child safety, rated for 10A to 16A, and features a glossy lacquered finish. Ideal for residential and commercial installations, this socket outlet ensures enhanced contact protection and is compatible with flexible or rigid cables. With an IP40 rating and IK04 impact resistance, it’s built to last and provides reliable power access in any environment.

Product Name/Title: French Standard 2P+E Shuttered Socket Outlet | 10A to 16A | Child-Safe Design | IP40 Protection | @EA of 1 | by Legrand

Brand: Legrand

SKU: 570021

Alternatively Known As: French standard power outlet, 2P+E socket, shuttered electrical socket, child-safe power outlet, 16A socket outlet

Technical Specifications
  • Nominal current: 16 A
  • Nominal voltage: 250 V AC
  • Frequency: 50-60 Hz
  • Connection type: Screwed terminal
  • Number of active contacts: 2 (round)
  • Protective contact: Round
  • Mounting method: Module frame with snap mounting
  • Material: Thermoplastic, lacquered glossy finish
  • Degree of protection: IP40
  • Impact resistance: IK04
  • Operating temperature range: -5 to 50 °C
  • Storage temperature range: -10 to 70 °C
  • Cable section compatibility: 4-4 mm²
  • Enhanced contact protection included
  • Loop through function available
  • Dimensions (H x L x W): 45mm x 37mm x 45mm
  • Weight: 0.1 kg
Key Features
  • French standard 2P+E shuttered socket outlet for child safety
  • Rated for 10 A to 16 A current
  • 2 modules size with snap mounting
  • Enhanced contact protection
  • Compatible with flexible or rigid cables with 4-4 mm² section
  • Glossy lacquered thermoplastic material, halogen free
  • IP40 degree of protection and IK04 impact resistance
  • Includes loop through function for easy wiring
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection.
Applications
  • Residential electrical installations
  • Commercial buildings requiring French standard socket outlets
  • Floor socket receptacles installation
Standards & Compliance
  • Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Halogen-free thermoplastic material reduces environmental impact
  • Durable design extends product lifespan, reducing waste
Warranty Information

Legrand standard warranty applies, typically 2 years against manufacturing defects.

Available Now

The Legrand Arteor French standard 2P+E shuttered socket outlet 10-16A in champagne is available for immediate purchase, ideal for residential and commercial electrical installations.
