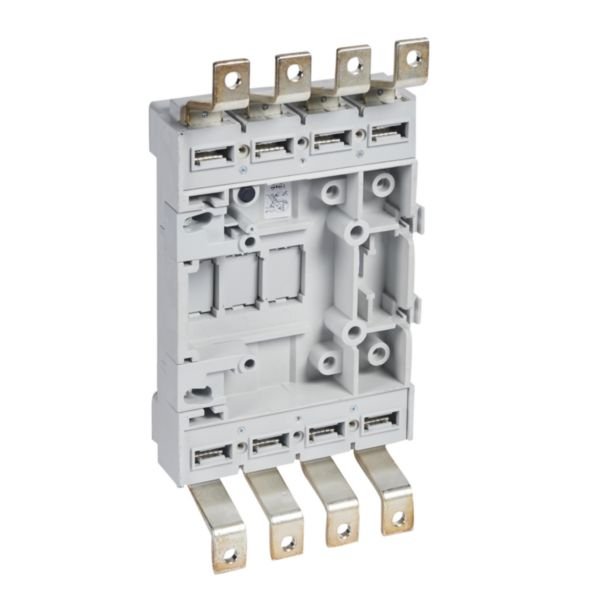

Front Terminal Mounting Base for DPX³ | 4 Poles | Plug-In Version | Bolt Connection | @Each of 1 | by Legrand
The Front Terminal Mounting Base for DPX³ is designed specifically for 4-pole circuit breakers, featuring a plug-in version for easy installation and maintenance. Ideal for electrical switchboards and modular installations, it ensures secure connections with a bolt connection type, making it perfect for industrial and commercial electrical distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Front Terminal Mounting Base for DPX³ | 4 Poles | Plug-In Version | Bolt Connection | @Each of 1 | by Legrand
Brand: Legrand
SKU: 422223
Alternatively Known As: DPX3 Front Terminal Base, DPX³ 4P Mounting Base, Legrand DPX³ Base
Technical Specifications
- Compatible with DPX³ 630 circuit breakers
- Plug-in version with special terminals
- Front terminal mounting base for 4 poles
- Bolt connection for main circuit
- Can be used as busbar adaptor or built-in device
- Dimensions (H x L x W): 120mm x 200mm x 150mm
- Weight: 2.5 kg
Key Features
- Plug-in version designed specifically for DPX³ circuit breakers
- Front terminal mounting base for easy installation and maintenance
- Accepts DPX³ and DPX³-I fitted with special terminals
- Bolt connection type for main circuit electrical connection
- Can be used as busbar adaptor or built-in device
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical switchboards and power cabinets
- Modular switches and circuit breakers installations
- Industrial and commercial electrical distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables secure and reliable electrical connections reducing energy loss
- Supports modular design for easier upgrades and reduced waste
Warranty Information
Legrand offers a standard 1-year warranty covering manufacturing defects.
Available Now
The Legrand Front Terminal Mounting Base for DPX³ 4P is available for immediate purchase, ideal for electrical switchboards and modular circuit breaker installations.
