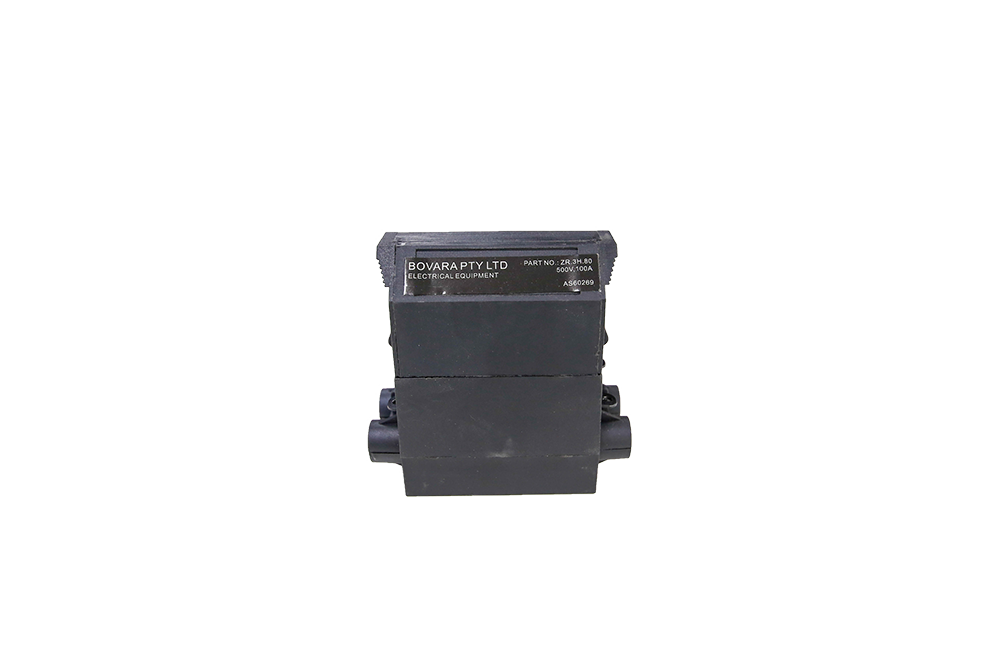

Front Wire Fuse Carrier 100A Loaded 100A 30x58mm Fuse Bovara
Bovara ZR3 100A front wire service fuse carrier comes loaded with a 100A 30 x 58mm fuse link, 80kA at 415V AC. Ideal for NSW supply authority meter panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 100A HRC Service Fuse Carrier, NSW Service Fuse Carrier, Front-Connected Fuse Carrier, Authority Service Fuse Carrier
Technical Specifications
- Model: ZR.3H.100
- Carrier Rating: 100A
- Fuse Link Rating: 100A
- Fuse Link Size: 30mm diameter x 58mm length
- Rated Voltage: 415V AC
- Breaking Capacity: 80kA
- Connection Type: Front wire
- Fuse Type: ZR3 HRC service fuse link
- Security: Anti-intrusion design with sealing facility
- Applications: Authority service fuses, fault current limitation and isolation
- Type Testing: BS 1361:1971 manufacturer-stated reference
- Fuse Reference: IEC 60269 manufacturer-stated compatibility
- Dimensions (H x L x W): 30mm x 58mm x 30mm
- Weight: 0.18 kg
Key Features
- Supplied loaded with a 100A service fuse link
- Front-wire configuration for compatible meter panels and fuse bases
- 80kA breaking capacity at 415V AC
- 100A carrier rating
- 30 x 58mm fuse-link format
- Anti-intrusion design with sealing facility
- Suitable for NSW supply authority meter-panel applications
Professional Installation Requirements
- Installation, connection, replacement and removal must be performed by a licensed electrician or authorised supply-authority contractor. Confirm compatibility with the relevant network operator's service rules before installation, and follow safe isolation procedures for potentially live service equipment.
Applications
- NSW supply authority meter panels
- Residential service protection assemblies
- Commercial and industrial meter panels
- Authority service fuse installations
- Low-voltage fault-current limiting
- Electrical isolation applications requiring an approved service fuse carrier
Standards & Compliance
- AS 60269.3.0 and AS 60269.3.1 requirements are applicable to current-limiting service and meter-protection fuse links in NSW installations
- AS/NZS 3000 requirements apply to associated electrical installation work
- NSW Service and Installation Rules require suitable service-protection fuse assemblies with anti-intrusion and sealing provisions
- Manufacturer-stated type testing reference: BS 1361:1971; this is not an Australian Standards certification
Environmental Benefits
- Replaceable fuse-link design allows the carrier to remain in service after fuse operation, reducing material waste
- Durable carrier construction can extend the service life of meter-panel equipment
- Metallic fuse and carrier components may be recoverable through appropriate electrical recycling streams
Warranty Information
No specific Bovara warranty period was located in the manufacturer's published product information. Warranty claims are subject to Bovara's applicable sale terms and Australian Consumer Law.
Available Now
Available through authorised Bovara distributors in Australia.
