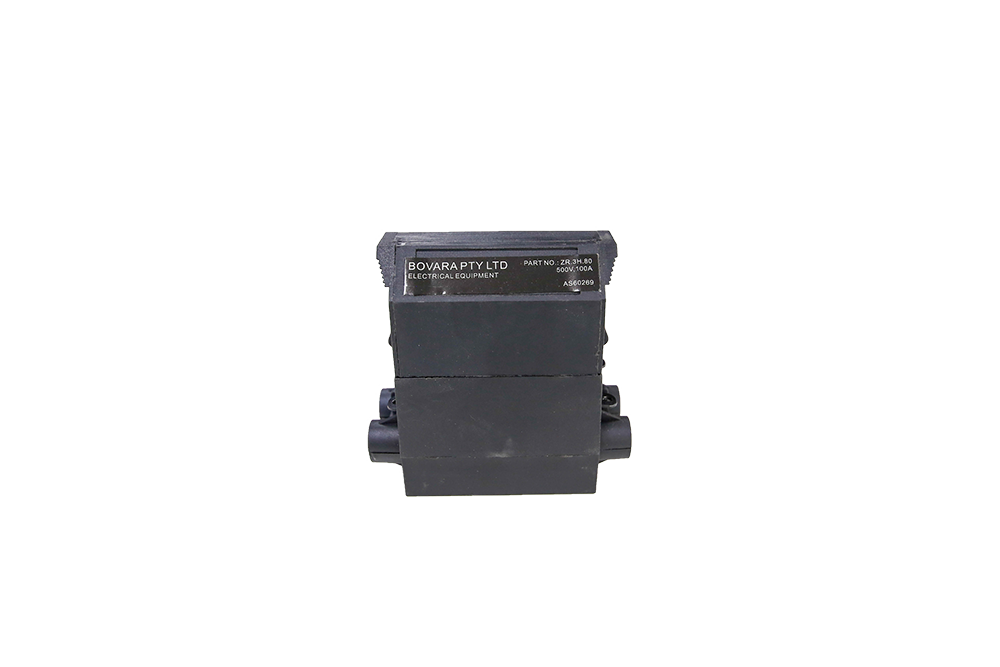

Front Wire Fuse Carrier 100A Loaded 80A 30x57mm Fuse Black Bovara

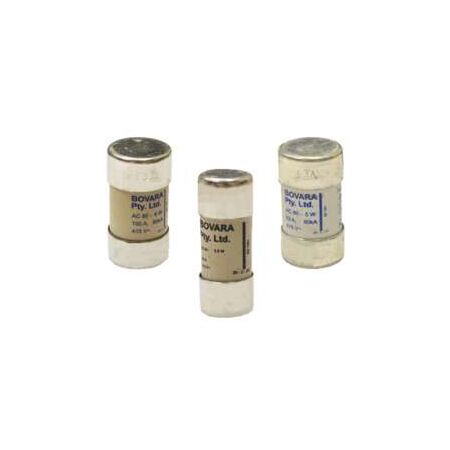

Bovara ZR3 100A black front wire service fuse carrier comes loaded with an 80A 30 x 57mm fuse link, 80kA at 415V/500V AC to BS1361. Ideal for NSW meter panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 100A Front-Wired Service Fuse Carrier, HRC Service Fuse Carrier, NSW Meter Panel Fuse Carrier, ZR.3H.80
Technical Specifications
- Model: ZR.3H.80
- Carrier Rated Current: 100A
- Fuse Link Rating: 80A
- Fuse Link Size: 30 x 57mm
- Rated Voltage: 415–500V AC
- Breaking Capacity: 80kA at 415V AC
- Fuse Type: ZR3 fuse-link
- Wiring Configuration: Front wire
- Type Testing: BS 1361:1971
- Colour: Black
- Security Feature: Anti-intrusion design
- Sealing: Includes sealing facility
- Application: Authority service fuses, fault-current limitation and isolation
- Dimensions (H x L x W): 22mm x 58mm x 30mm
- Weight: 0.15 kg
Key Features
- Pre-fitted with an 80A service fuse link
- 100A-rated carrier for service and meter protection assemblies
- 80kA high rupturing capacity at 415V AC
- Suitable for 415–500V AC applications
- Front-wired configuration for compatible meter panels
- Anti-intrusion design helps restrict unauthorised access
- Sealing facility for service equipment security
- Designed for use with NSW authority service and meter protection panels
Professional Installation Requirements
- Installation, replacement and servicing must be performed by a licensed electrician or authorised supply-authority contractor in accordance with the applicable NSW Service and Installation Rules, AS/NZS 3000, manufacturer instructions and electricity-distributor requirements.
Applications
- NSW electricity meter panels
- Authority service protection devices
- Meter protection devices
- Residential and commercial service fuse assemblies
- Fault-current limiting installations
- Electrical isolation applications
- Replacement of compatible 30 x 57mm front-wired service fuse assemblies
Standards & Compliance
- NSW Service and Installation Rules requirements for 100A-rated service protection fuse assemblies with an 80A current-limiting fusible link
- AS 60269.3.0 and AS 60269.3.1 requirements referenced by the NSW Service and Installation Rules for applicable HRC fusible links
- AS/NZS 3000 installation requirements apply to the associated electrical installation
- Type tested in accordance with BS 1361:1971
Environmental Benefits
- Replaceable fuse-link design allows the carrier to remain in service after fuse operation, reducing component waste
- Durable service equipment construction can reduce replacement frequency and material consumption
- Metallic fuse components can be recovered through appropriate electrical recycling streams
Warranty Information
Bovara does not publicly specify a standard warranty period for this product. Warranty claims are subject to Bovara’s applicable terms and Australian Consumer Law.
Available Now
Available through authorised Bovara distributors in Australia.
