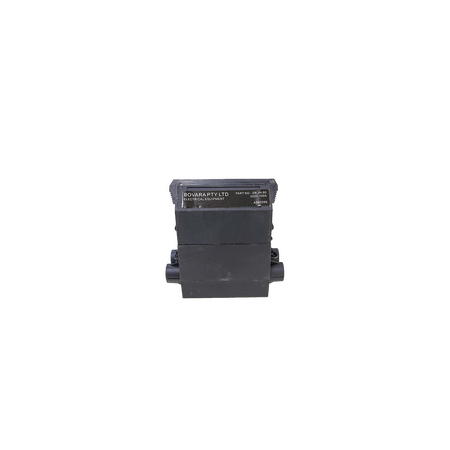

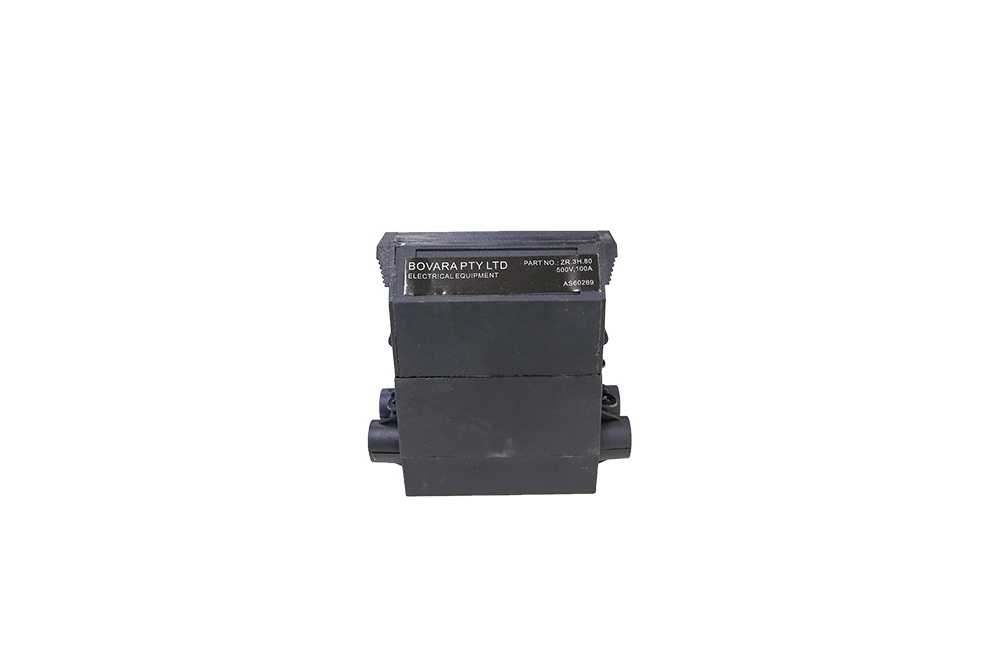

Front Wire Fuse Carrier Only 100A 30x58mm Bovara
Bovara ZR3 100A front wire service fuse carrier only, suits 30 x 58mm service fuse links up to 100A. Ideal for NSW supply authority meter panel replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 100A Service Fuse Carrier, Front-Wired HRC Fuse Carrier, NSW Service Fuse Carrier, ZR3 Fuse Carrier
Technical Specifications
- Model: ZR.3H.FC
- Carrier Rated Current: 100A
- Wiring Configuration: Front wire
- Compatible Fuse Link: 30 x 58mm nominal, up to 100A
- Rated Voltage: 500V AC
- Breaking Capacity: Up to 80kA at 415V AC for the ZR3 service-fuse range
- Application: Authority service fuses, fault-current limiting and isolation
- Security: Anti-intrusion design with sealing facility
- Supply: Carrier only; fuse link not included
- Product Family: Bovara ZR3
- Manufacturer Type Testing: BS 1361:1971 reference for the ZR3 service-fuse range
- Dimensions (H x L x W): 30mm x 58mm x 30mm
- Weight: 0.15 kg
Key Features
- Front-wire configuration for compatible service-fuse bases and meter panels
- Accepts 30 x 58mm nominal ZR3 service fuse links up to 100A
- Suitable for NSW supply authority meter panel replacement applications
- Anti-intrusion design for service equipment security
- Sealing facility for authorised service installations
- High fault-current capability within the ZR3 product range
- Supplied without a fuse link
Professional Installation Requirements
- Installation, replacement and connection must be performed by a suitably licensed electrician or authorised service provider in accordance with the applicable electricity distributor requirements, current NSW Service and Installation Rules and AS/NZS 3000. Confirm compatibility with the existing fuse base, insulating cover, fuse link and supply-authority requirements before installation.
Applications
- NSW supply authority meter panel replacements
- Residential service protection devices
- Meter protection devices
- Authority service-fuse assemblies
- Fault-current limiting equipment
- Electrical switchboards and metering equipment refurbishment
Standards & Compliance
- AS 60269.3.0 and AS 60269.3.1 are applicable to compatible low-voltage HRC fuse links used in the service-fuse assembly
- NSW Service and Installation Rules apply to service protection and meter protection installations
- The ZR3 range is manufacturer-referenced as type tested to BS 1361:1971; this is not an Australian Standards certification
Environmental Benefits
- Replaceable fuse-link design allows the carrier to remain in service when only the fuse link requires replacement
- Durable service equipment can reduce replacement frequency and associated material waste
- Metal and polymer components may be recyclable through appropriate electrical equipment recycling streams, subject to local requirements
Warranty Information
No specific Bovara warranty period was located in the manufacturer's publicly available product information. Warranty coverage should be confirmed with Bovara or the supplying distributor and is subject to applicable Australian Consumer Law.
Available Now
Available through authorised Bovara distributors in Australia.
