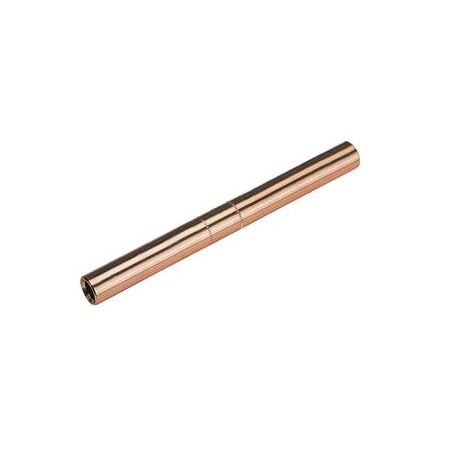

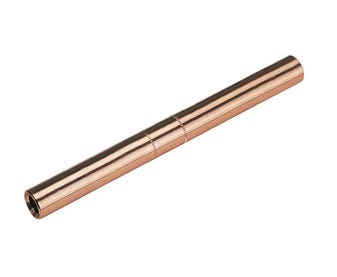

F/T Copper Sleeve for 19/3.00 | 99.95% Pure Copper | Full Tension Compliance | Quick Crimp Design by Cabac
Cabac Full Tension Copper Sleeve for 19/3.00 stranded hard drawn copper overhead conductors, compliant with AS 1154.1, designed for quick and reliable crimping with hydraulic crimpers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: F/T Copper Sleeve for 19/3.00
Brand: Cabac
SKU: PT134
Alternatively Known As: Copper Compression Sleeve, Full Tension Copper Connector, Overhead Line Copper Sleeve, Electrical Copper Crimp Sleeve
Technical Specifications
- Material: 99.95% pure copper
- Oxygen content: 30 ppm
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: fully annealed
- Operating temperature range: -55°C to 100°C
- Not plated to avoid limited shelf life
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohms cm
- Compression lines and internal stop for proper installation
- Dimensions (H x L x W): 20mm x 134mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed to accommodate stranded hard drawn copper overhead conductors
- Complies with full tension testing requirements of AS 1154.1
- Quickly crimped using hexagonal dies and HT51 hydraulic crimper or larger hydraulic crimpers
- Finished joint is shorter and less bulky than McIntyre sleeves
- Avoids twisting of conductor required by McIntyre sleeves
- Plastic plugs prevent foreign material entering sleeve before crimping
- Compression lines marked to indicate position and number of compressions
- Indent in center acts as internal stop for correct conductor insertion length
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals using appropriate hydraulic crimping tools to ensure compliance and safety.
Applications
- Electrical overhead line connections
- Stranded hard drawn copper overhead conductors
- Full tension electrical conductor joints
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS 1154.1 full tension testing requirements
Environmental Benefits
- Made from 99.95% pure copper, a recyclable and sustainable material
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request; typically covered against manufacturing defects.
Available Now
The Cabac F/T Copper Sleeve for 19/3.00 is available for immediate purchase, ideal for overhead electrical conductor connections in power distribution.
