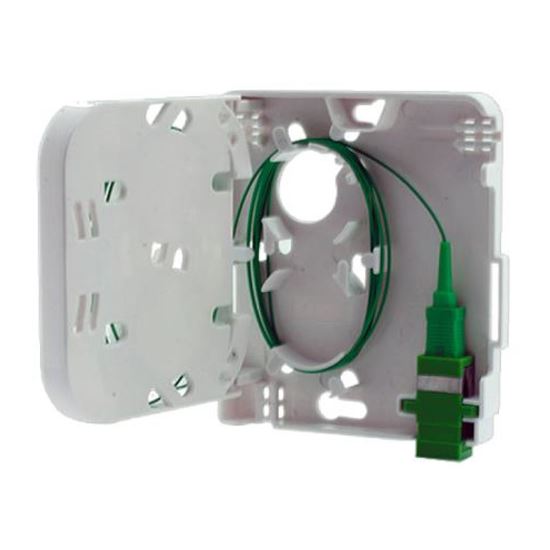

FTTH Wall Outlet 2 Port SC Duplex/LC Quad Unloaded | High-Impact ABS | Compact Design | by Repelec
The FTTH Wall Outlet is designed for efficient fibre optic network terminations, accommodating 2 SC duplex or 2 LC quad adapters. Built from high-impact ABS plastic, this unloaded wall plate features a compact design and integrated cable management, making it ideal for residential and commercial installations. Perfect for FTTH applications, it ensures a neat and reliable setup for your fibre optic needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FTTH Wall Outlet 2 Port SC Duplex/LC Quad Unloaded | High-Impact ABS | Compact Design | by Repelec
Brand: Repelec
SKU: DYNWO002
Alternatively Known As: FTTH wall plate, fibre optic wall outlet, SC duplex wall outlet, LC quad wall plate, fibre termination box
Technical Specifications
- Material: High-impact ABS plastic
- Adapter Capacity: 2 x SC duplex or 2 x LC quad (unloaded)
- Cable Entry: Rear and side knockouts
- Mounting: Standard wall mount
- Colour: White
- Operating Temperature: -20°C to +60°C
- Flame Retardant: Yes
- Dimensions (H x L x W): 86mm x 25mm x 86mm
- Weight: 0.12 kg
Key Features
- Accommodates 2 SC duplex or 2 LC quad fibre optic adapters
- Unloaded design for flexible configuration
- Compact wall-mountable enclosure
- Suitable for FTTH and fibre optic network terminations
- Easy installation with snap-in adapter slots
- Integrated cable management for neat installations
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper fibre optic cable termination and compliance with network standards.
Applications
- Residential FTTH (Fibre to the Home) installations
- Commercial and office fibre optic network terminations
- Telecommunications rooms and data centres
- MDUs (Multi-Dwelling Units) for fibre distribution
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports high-speed fibre networks, reducing reliance on copper cabling and associated energy losses.
- Enables efficient, future-proof data infrastructure with minimal maintenance.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec FTTH Wall Outlet 2 Port SC Duplex/LC Quad Unloaded (DYNWO002) is available for immediate purchase. Ideal for residential and commercial fibre optic network terminations.
