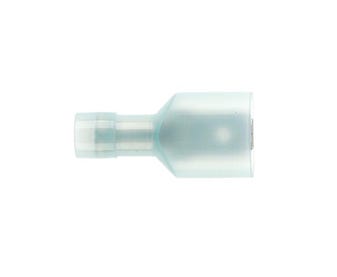

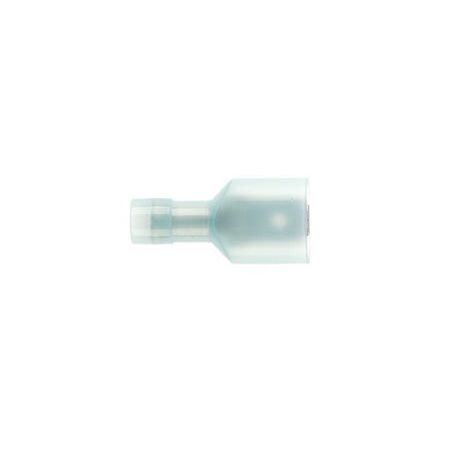

Fully Insulated Male Terminal 6.4 x 0.8mm | Blue | High Quality by Cabac
Fully insulated male terminal with 6.4 x 0.8mm dimensions and high-quality construction—ideal for electrical wiring and connectivity. Built for long-term integrity, with reduced installation errors and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fully Ins.Male Tab 6.4 X 0.8mm Blue Dg
Brand: Cabac
SKU: FIMT2-6.4DG
Alternatively Known As: Pre-insulated male terminal, insulated quick connect terminal, blue male spade terminal, electrical insulated connector
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: 6% min
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Conductive Material (Except Quick Connect Range): Copper 99.9% Pure
- Tensile Strength: 200 MPa
- Ductile Rating: 35% min
- Final Metal State: Fully Annealed
- Oxygen Content: 50ppm max
- Total Conductivity: 99.5% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Electroplating Material: Tin
- Tin Content: 99.9%
- Plating Thickness: 2.5 microns
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Torque Recommendations: Vary by thread diameter, e.g., 3mm thread torque 2.4 Nm
- Dimensions (H x L x W): 0.8mm x 20mm x 6.4mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimising substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Full technical back up including QA
- Conforms to AS 3169 and AS4437
Professional Installation Requirements
- Should be crimped onto the conductor with a quality crimper designed for the specific terminal type; professional installation recommended for safety and reliability.
Applications
- Electrical wiring and connectivity in switchgear
- Contactors and terminal blocks
- General electrical and power connectivity requiring insulated terminals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Improved electrical efficiency reduces energy loss
- Conforms to international standards ensuring safe and sustainable use
Warranty Information
Warranty details available upon request from manufacturer; typically covered against manufacturing defects.
Available Now
The Cabac Fully Insulated Male Terminal 6.4 x 0.8mm Blue DG is available for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable insulated terminals.
