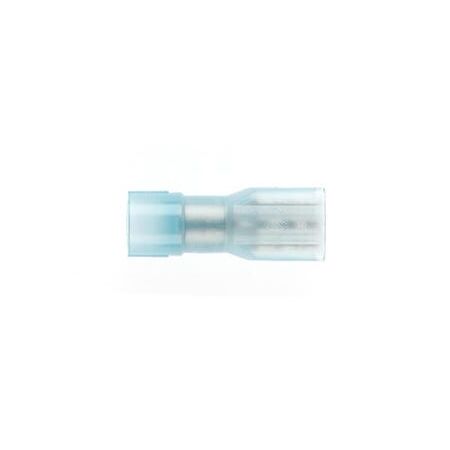

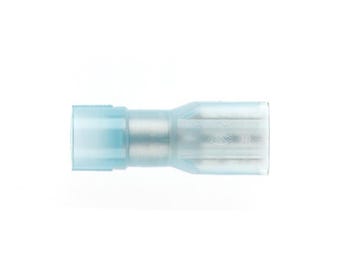

Fully Insulated Quick Connect Terminal 6.4 x 0.8mm | Blue Double Grip | 300V Rating by Cabac
Fully insulated quick connect terminal with 6.4 x 0.8mm dimensions and 300V rating—ideal for secure electrical connections in switchgear and terminal blocks. Built for reliability, with easy conductor entry and long-term integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fully Ins.Quick Connect 6.4 X 0.8mm Blue Dg
Brand: Cabac
SKU: FIQC2-6.4DG
Alternatively Known As: Pre-insulated terminal, Quick connect terminal, Blue insulated terminal, Double grip terminal, Electrical crimp terminal
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: 6% min
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% Tin content, plating thickness 2.5 microns
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: Minimum 1.5kV
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Total Conductivity: 99.5% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Dimensions (H x L x W): 0.8mm x 20mm x 6.4mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Full technical backup including QA
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- All terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure secure and reliable connections.
Applications
- Electrical wiring connections in switchgear
- Contactors and terminal blocks
- General electrical and power connectivity applications requiring secure and reliable terminal connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- High electrical efficiency reduces energy loss in connections
Warranty Information
Warranty details available upon request; product backed by full technical support and quality assurance.
Available Now
The Cabac Fully Insulated Quick Connect Terminal 6.4 x 0.8mm Blue Double Grip is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring secure and efficient terminal connections.
