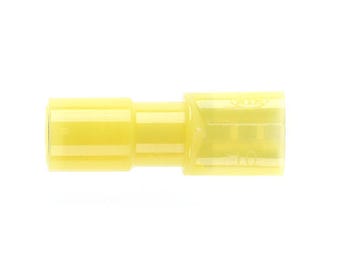

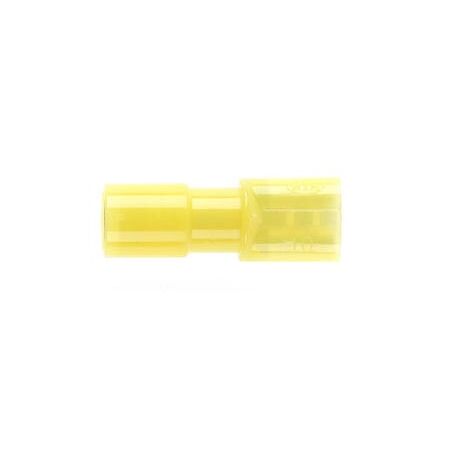

Fully Insulated Quick Connect Terminal 6.4 x 0.8mm | Yellow | High Quality | Easy Conductor Entry by Cabac
Fully insulated quick connect terminal with 6.4 x 0.8mm dimensions and high-quality construction—ideal for electrical wiring connections. Built for reliability, with easy conductor entry and long-term electrical integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fully Ins.Quick Connect 6.4 X 0.8mm Dg Yellow
Brand: Cabac
SKU: FIQC5.5-6.4DG
Alternatively Known As: Pre-insulated quick connect terminal, insulated spade terminal, quick connect electrical terminal, yellow insulated terminal 6.4x0.8mm
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: 6% min
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% tin content, plating thickness 2.5 microns
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: Minimum 1.5kV
- Insulation Resistance: Above 100 megohms
- Working Voltage: Up to 300V AC/DC
- Total Conductivity: 99.5% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Dimensions (H x L x W): 0.8mm x 15mm x 6.4mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimising substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Full technical backup including QA
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type; professional installation recommended for safety and reliability.
Applications
- Electrical wiring connections in switchgear
- Contactors and terminal blocks
- General electrical and power connectivity applications requiring quick connect terminals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- High electrical efficiency reduces energy loss in connections
Warranty Information
Warranty details available upon request; product backed by full technical support and quality assurance.
Available Now
The Cabac Fully Insulated Quick Connect Terminal 6.4 x 0.8mm Yellow DG is available for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable quick connect terminals.
