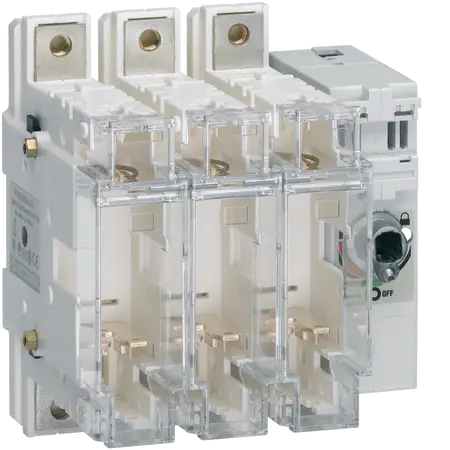

Fuse Combination Switch 3P | 160A Rated | Interlockable Cover | HFD316 by Hager
Fuse combination switch with 160A rating and 3 poles—ideal for industrial and residential power distribution. Built for safety with an interlockable cover, ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fuse comb. switch 3P - 160 A / T00
Brand: Hager
SKU: HFD316
Alternatively Known As: HFD316, 3 Pole Fuse Switch, 160 Amp Fuse Switch
Technical Specifications
- Rated current: 160 A
- Number of poles: 3
- Rated insulation voltage: 750 V
- Total power loss under IN: 64.80 W
- Power loss per pole at In: 21.60 W
- Rated operational power under 400 V AC: 105000 W
- Ingress Protection (IP) class: IP00
- Fuse size: NH00
- Dimensions (H x L x W): 162mm x 200mm x 148mm
- Weight: 5 kg
Key Features
- Rated current of 160 A with 3 poles for reliable performance.
- Interlockable cover for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Main switch for large homes or multi-family units
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Hager Fuse Combination Switch 3P - 160 A is available now for immediate purchase. Ideal for industrial and residential power distribution applications.
