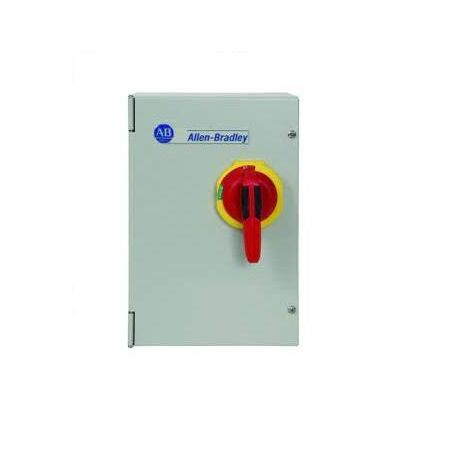

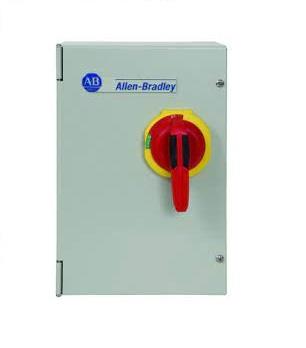

Product Name/Title: Allen-Bradley 194RFC301753SPY Fused Disconnect Switch
Brand: Allen-Bradley
SKU: 194RFC301753SPY
Alternatively Known As: Fused Disconnect Switch, Industrial Disconnect Switch, UL Enclosed Switch
Technical Specifications
- Voltage Rating: 600 VAC
- Current Rating: 30 Amp
- Poles: 3
- Fuse Type: UL Class CC, Type HRCI-MISC
- Enclosure Type: Painted metal
- Enclosure Rating: Type 3/4/12, NEMA 4/4X, IP66
- Handle: Standard pistol red/yellow
- Fuse Status Indication: Yes
- Dimensions (H x L x W): 200mm x 100mm x 150mm
- Weight: 3.5 kg
Key Features
- UL enclosed painted metal enclosure
- Type 3/4/12 rated for harsh environments
- Fused with UL Class CC and Type HRCI-MISC fuses
- 30 Amp, 3 pole switch
- Fuse status indication for easy monitoring
- Standard pistol red/yellow handle
- NEMA 4/4X and IP66 rated for dust and water protection
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Industrial electrical control panels
- Commercial electrical distribution
- Machinery isolation and safety switch
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable enclosure reduces need for frequent replacements, minimizing waste
- High protection rating (NEMA 4/4X, IP66) ensures long service life in harsh environments
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 194RFC301753SPY Fused Disconnect Switch is available for immediate purchase, ideal for industrial and commercial electrical safety applications.
