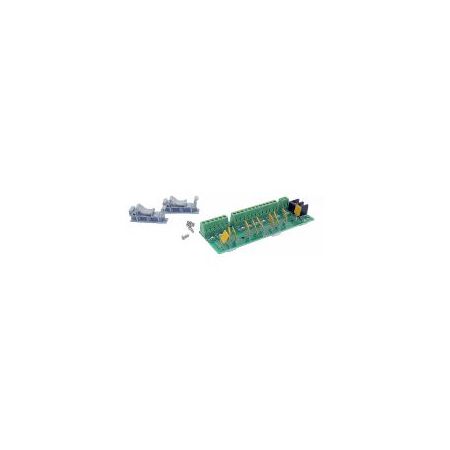

Fused Distribution Module 10 Way 2A PTC 10-28V Patriot Power
Patriot Power distribution module features 10 x 2A self-healing PTC fused outputs, 20A total, 10-28V AC or DC and DIN rail mount. Ideal for CCTV and alarm power.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10-Way Power Distribution Board, CCTV Power Distribution Module, Alarm Power Distribution Board, Self-Healing PTC Fuse Board
Technical Specifications
- Model: DIS-DC-10WAY-2A
- Input Voltage Range: 0–28V AC or DC
- Recommended Operating Voltage: 10–28V AC or DC
- Number of Outputs: 10
- Maximum Total Current: 20A
- Maximum Constant Current per Output: 2A
- Fuse Type: Self-healing PTC
- Output Indication: Individual LED indicators
- Mounting: DIN rail or double-sided adhesive tape
- Packaging Unit: 1 each
- Dimensions (H x L x W): 15mm x 127mm x 45mm
- Weight: 0.1 kg
Key Features
- Ten individually protected power outputs
- Self-healing PTC protection reduces the need for fuse replacement after an overload clears
- Individual LED indicators provide output status visibility
- Suitable for both AC and DC low-voltage applications
- DIN rail mounting for security cabinets and equipment enclosures
- Double-sided tape supplied for quick surface installation
- Separates fault protection between connected CCTV, alarm and access-control devices
Professional Installation Requirements
- Install as part of a low-voltage CCTV, alarm or access-control system by a suitably competent security or electrical technician. Size the upstream power supply and wiring for the 20A maximum total load, observe polarity for DC installations, and isolate power before making connections.
Applications
- CCTV camera power distribution
- Intruder alarm and security system power distribution
- Access-control equipment and peripherals
- Security cabinet wiring and low-voltage equipment enclosures
- 12V, 24V and other compatible AC/DC auxiliary power distribution
Standards & Compliance
- AS/NZS 3000:2018 may apply to the selection, wiring and installation of the connected low-voltage electrical installation
- Product-specific Australian Standards certification is not stated in the available manufacturer documentation
Environmental Benefits
- Self-healing PTC protection reduces replacement fuse consumption and associated waste
- Centralised distribution can reduce the number of separate plug-pack power supplies required in a security installation
- Durable solid-state overcurrent protection may extend service life by limiting damage from individual output faults
Warranty Information
A 2-year warranty is listed for Patriot Power security power supply products by an Australian security distributor; confirm the applicable warranty terms for model DIS-DC-10WAY-2A before purchase.
Available Now
Available through Patriot Power and authorised Australian security, CCTV and electrical distributors; live stock should be confirmed with the supplier.
