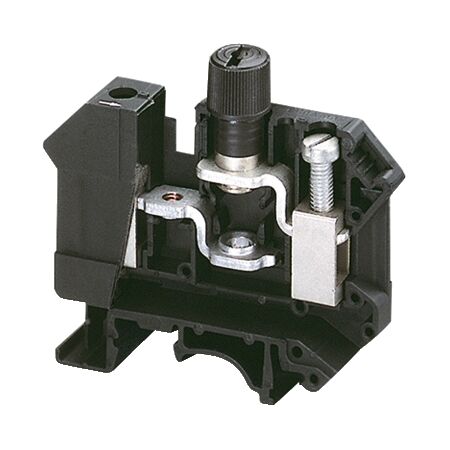

Fused Terminal Block for 5x20mm Fuse 500V Clip On Clipsal
Clipsal Fused Terminal Block for Fuse Clip On Mounting features fixed carrier, 16 mm² and 11mm. Designed for 5x20mm cartridge fuses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Terminal block type: fixed carrier
- Nominal cross section: 16 mm²
- Connections: 1 x screw terminal upstream, 1 x screw terminal downstream
- Wire stripping length: 11 mm
- Tightening torque: 1.5...1.8 N.m
- Dielectric strength: 1000 V conforming to IEC 60243-1
- Flame retardance: V0, thickness 0.8 mm conforming to UL 94
- Dimensions (H x L x W): 57.2mm x 62mm x 12mm
- Weight: 0.1 kg
Key Features
- Designed for 5x20mm cartridge fuses
- Clip-on mounting mode for easy installation
- Rated operational voltage of 500V
- Rated current of 10A
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protection in electrical installations
- Commercial: Use in various electrical enclosures
Standards & Compliance
- Complies with EN/IEC 60947 for safety and performance standards.
Environmental Benefits
- Halogen free plastic parts for reduced environmental impact.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Linergy Screw Terminal Fused for 5X20mm Cartridge Fuse is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
