Home/Electrical Supplies/Clipsal Industrial/Schneider Automation & Control/Terminal Blocks/Fused Terminal Block with LED | 6.3x32mm Fuse | 110-250V | 2PTS by Clipsal

Trade Discount 20%

Linergy, Screw Terminal, Fused, for 6.3X32mm Fuse, with LED 110-250V, 2PTS, 6M

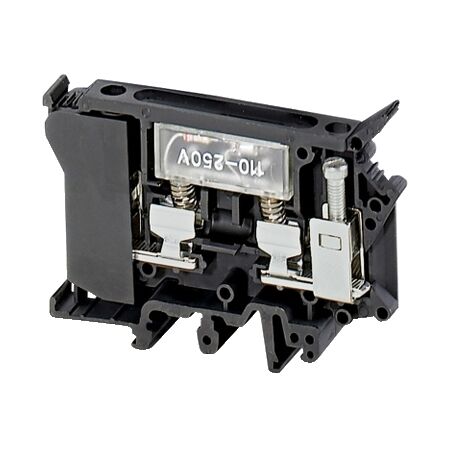

Fused Terminal Block with LED | 6.3x32mm Fuse | 110-250V | 2PTS by Clipsal

BRAND: Clipsal

SKU: NSYTRV42SF6LA

$12.20 List price: $15.20

+ −

30 Days Return Delivery Options

Fused terminal block with LED indicator and 6.3x32mm fuse—ideal for industrial applications. Built for reliable electrical connections, compatible with various PrismaSeT enclosures.

Description
Attachments

Product Name/Title: Linergy, Screw Terminal, Fused, for 6.3X32mm Fuse, with LED 110-250V, 2PTS, 6M

Brand: Clipsal

SKU: NSYTRV42SF6LA

Alternatively Known As: Fused Terminal Block, LED Terminal Block, Screw Terminal Block

Technical Specifications

Rated operational voltage: 500 V conforming to EN/IEC 60947-7-1.
Rated current: 10 A conforming to EN/IEC 60947-7-1.
Material: Polyamide 6/6 insulating case.
Fuse size: 6.3 x 32 mm.
Nominal cross section: 16 mm².
Cable cross section: 0.5...16 mm², flexible and solid.
Tightening torque: 0.6...0.8 N.m.
Dielectric strength: 1000 V conforming to IEC 60243-1.
Dimensions (H x L x W): 60.5mm x 79mm x 10.2mm
Weight: 0.1 kg

Key Features

Fused disconnect terminal block with LED indicator.
Compatible with various PrismaSeT enclosures.
Designed for a wide range of cable cross sections.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Suitable for use in various industrial applications requiring reliable electrical connections.

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Green Premium product status.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Linergy Fused Terminal Block with LED Indicator is available now for immediate purchase. Ideal for industrial applications requiring reliable electrical connections.

NSYTRV42SF6LA (NSYTRV42SF6LA, 284 Kb) [Download]
