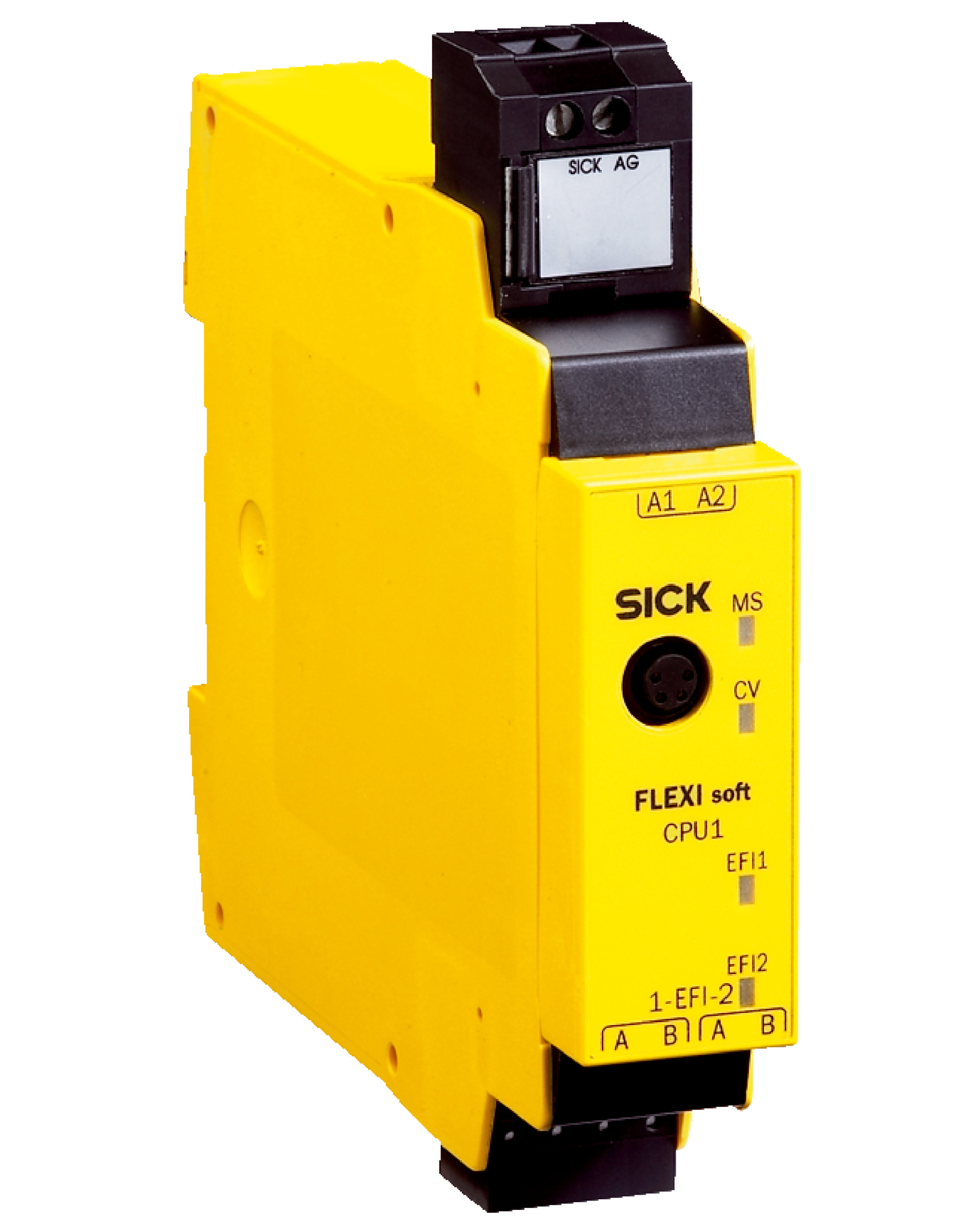

FX3 CPU Module | SIL 3 Safety Integrity | IP20 Enclosure | by SICK
The FX3 CPU Module is designed for industrial safety control systems, featuring a high safety integrity level of SIL 3 and an IP20 enclosure rating. Ideal for machine safety monitoring and automation applications, this module ensures reliable performance in challenging environments with its protective coating and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FX3 CPU Module | SIL 3 Safety Integrity | IP20 Enclosure | by SICK
Brand: SICK
SKU: 1050616
Alternatively Known As: SICK FX3 CPU 130012, FX3 CPU Module, Safety Controller Module
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 1.69 x 10^-9
- Mission time: 20 years
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Internal power consumption: ≤ 2.5 W
- Overvoltage category: II (EN 61131-2)
- Switch-on time: ≤ 18 seconds
- Enclosure rating: IP20 (EN 60529)
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- Sulfur dioxide resistance: 25 ppm for 21 days at 25 °C
- Mixed gas resistance: H2S, NO2, Cl2, SO2 for 21 days at 30 °C
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.119 kg
Key Features
- Main module with protective coating for challenging ambient conditions including sulfur resistance
- Configuration via Flexi Soft Designer software
- Safe SICK device communication and networking with Flexi Link
- High safety integrity level SIL 3 and Category 4 performance
- Two EFI interfaces with plug-in spring terminals
- RS-232 configuration and diagnostics interface
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial safety systems and SICK Flexi Soft Designer software.
Applications
- Industrial safety control systems
- Machine safety monitoring
- Automation safety applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Protective coating extends product lifespan reducing waste
- Low internal power consumption (≤ 2.5 W) supports energy efficiency
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now

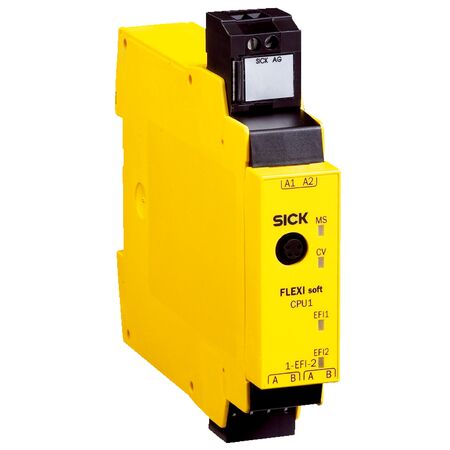

The SICK FX3-CPU130012 Main Module is available for immediate purchase, ideal for industrial safety and automation applications.
