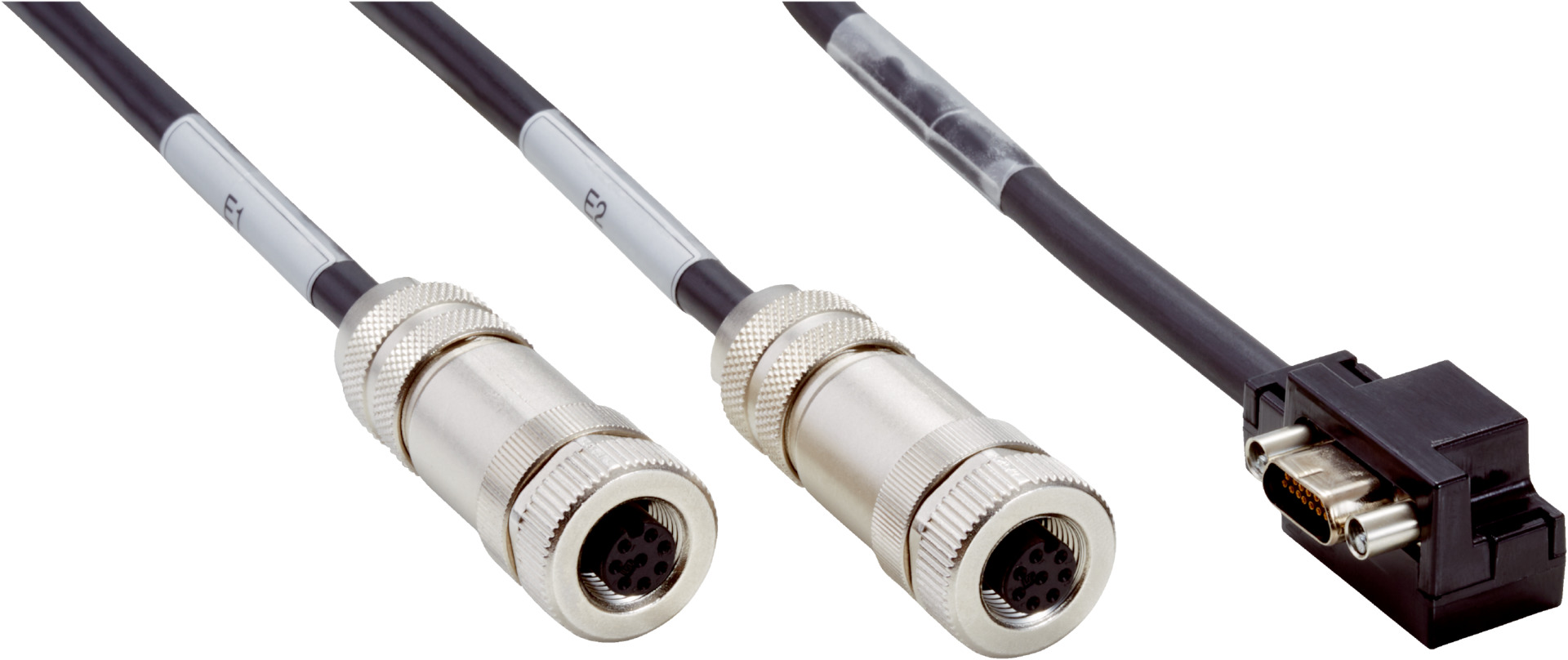

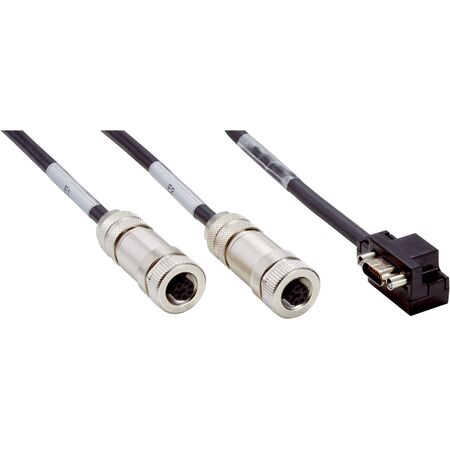

FX3-MOC Y-CABLE | D-Sub 15-Pin to Dual M12 8-Pin | Shielded PVC | by SICK
The FX3-MOC Y-CABLE is a versatile Y-splitter cable featuring one male D-Sub 15-pin connector and two female M12 8-pin A-coded connectors. Designed for industrial automation systems, this shielded cable ensures durability and reduces electrical noise, making it perfect for connecting sensors and actuators in factory automation and control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Accessory family: Other adapters
- Connection type head A: Male connector, D-Sub, 15-pin, Form A
- Connection type head B: Female connector, M12, 8-pin, A-coded
- Connection type head C: Female connector, M12, 8-pin, A-coded
- Locking plug connector: Screw connection
- Connecting cable length: 3 m
- Cable material: PVC
- Cable color: Black
- Conductor cross section: AWG28, AWG26
- Cable diameter: 6.6 mm, 6.2 mm
- Housing material: Plastic/metal
- Housing color: Black
- Locking nut material: Steel
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature: -25°C to +80°C (stationary), -10°C to +80°C (flexible)
- Dimensions (H x L x W): 20mm x 3000mm x 150mm
- Weight: 0.2 kg
Key Features
- Y-cable adapter with one male D-Sub 15-pin connector and two female M12 8-pin A-coded connectors
- Shielded cable with PVC material for durability and electrical noise reduction
- Screw connection locking plug for secure and reliable connections
- Flexible cable with bending radius > 12 x cable diameter for flexible use
- Operating temperature range from -25°C to +80°C for stationary use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems requiring signal splitting or extension
- Connection of sensors and actuators with D-Sub and M12 interfaces
- Use in factory automation and control panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable PVC cable reduces need for frequent replacements, minimizing waste
- Shielded design reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FX3-MOC Y-CABLE is available for immediate purchase, ideal for industrial automation and control system applications.
