FX3-MOC Y-CABLE | Integration modules and adapters

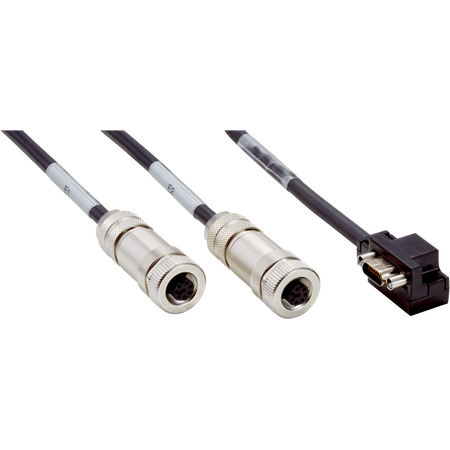

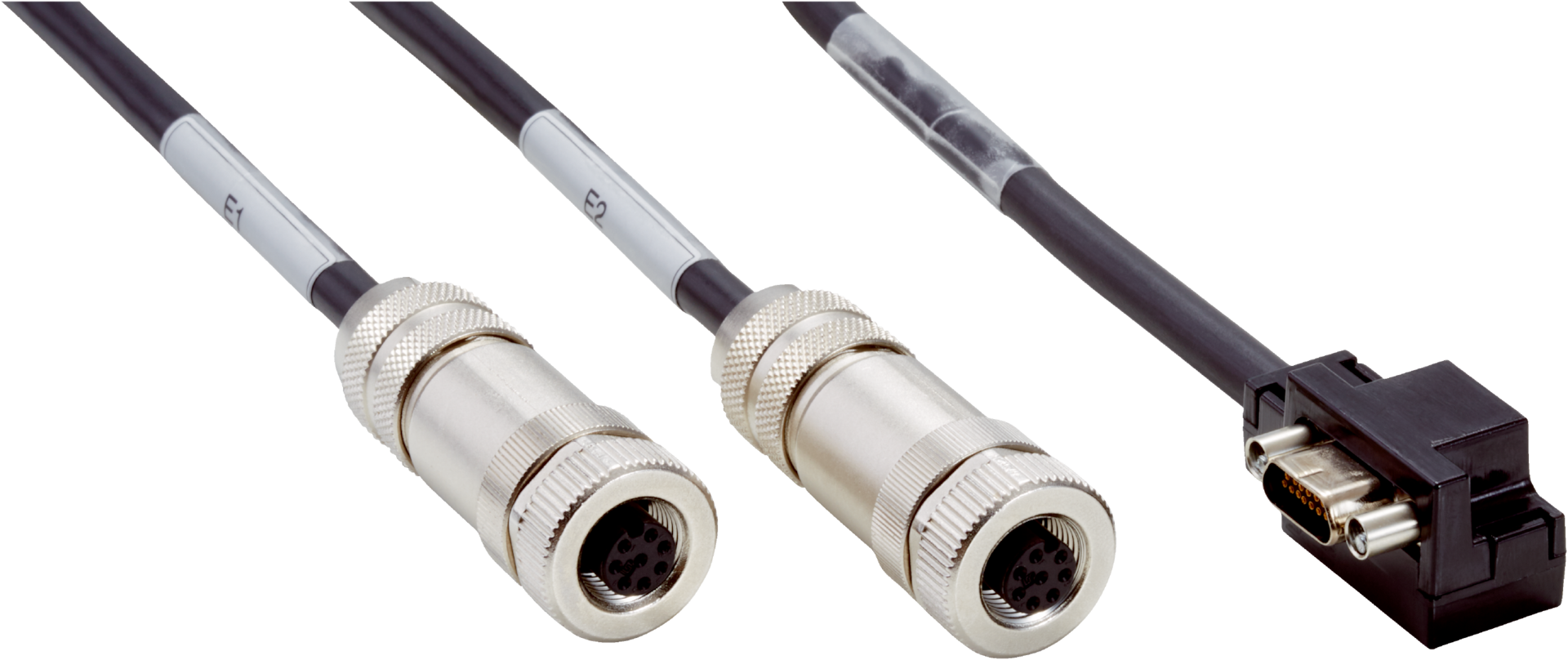

The SICK FX3-MOC Y-Cable is an integration module adapter designed for connecting the Motion Control Module FX3-MOC with two HTL, TTL, or sin/cos encoders, featuring durable PVC cable and secure screw connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FX3-MOC Y-CABLE | Integration modules and adapters
Brand: SICK
SKU: 2121172
Alternatively Known As: FX3-MOC Y Cable, Motion Control Module Adapter Cable, Encoder Connection Cable
Technical Specifications
- Accessory family: Other adapters
- Connection type head A: Male connector, Micro D-Sub, 15-pin
- Connection type head B: 2 x female connector, M12, 8-pin
- Locking plug connector: Screw connection
- Connecting cable length: 1 m
- Cable material: PVC
- Cable color: Black
- Conductor cross section: AWG28, AWG26
- Cable diameter: 6.6 mm, 6.2 mm
- Housing material: Plastic/metal
- Housing color: Black
- Locking nut material: Steel
- Shielding: Galvanized copper braiding, approx. 85% density
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature: –25 °C to +80 °C (stationary), –10 °C to +80 °C (flexible)
- Dimensions (H x L x W): 20mm x 1000mm x 150mm
- Weight: 0.1 kg
Key Features
- Male connector, Micro D-Sub, 15-pin on head A
- Two female connectors, M12, 8-pin on head B
- Screw connection locking plug connector
- PVC cable material with black color
- Galvanized copper braiding shielding with approximately 85% density
- Flexible use bending radius greater than 12 times cable diameter
- Stationary position bending radius greater than 5 times cable diameter
- Operating temperature range from –25 °C to +80 °C (stationary), –10 °C to +80 °C (flexible)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with motion control and encoder systems to ensure proper connection and operation.
Applications
- Connecting the Motion Control Module FX3-MOC with two HTL, TTL, or sin/cos encoders
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing electronic waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK FX3-MOC Y-Cable is available for immediate purchase, ideal for industrial automation and motion control applications.
